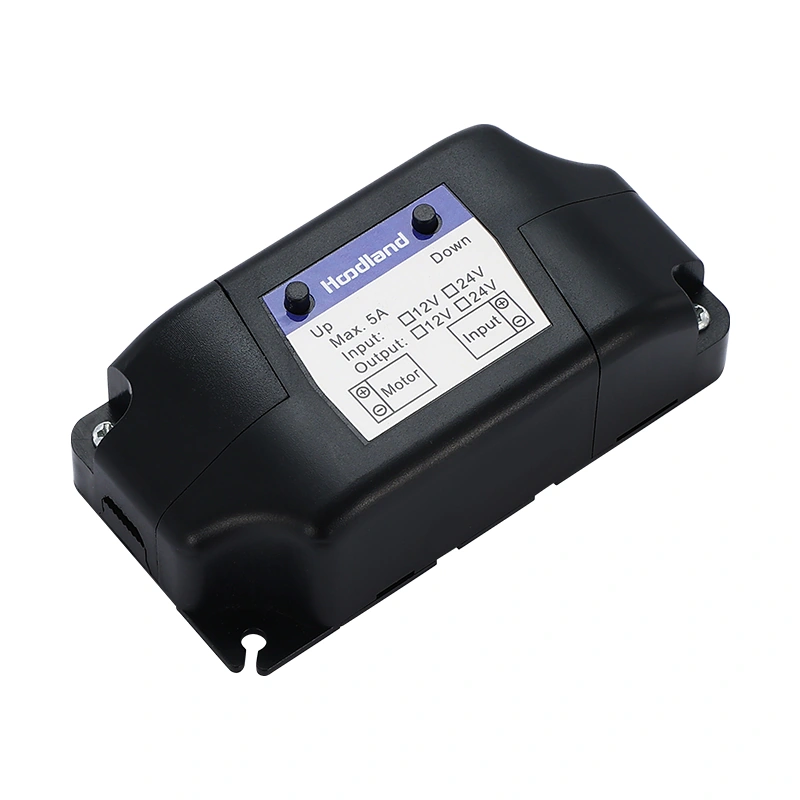

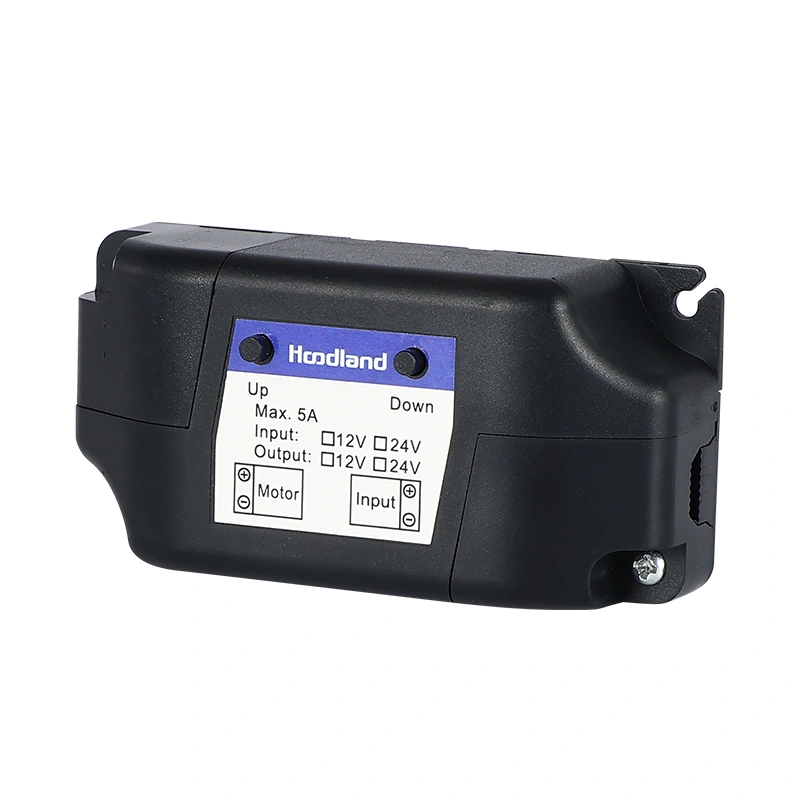

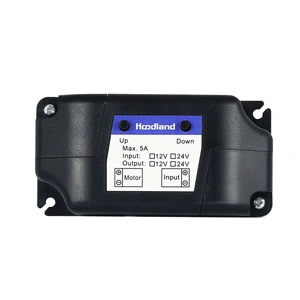

IPC3 DC Linear Actuator Controls Custom | Precision Motion Architecture for Industry 4.0

Product Overview and Core Applications

Drawing from a decade of on-site integration experience in heavy-duty environments, we engineered the IPC3 to mitigate common induction spikes, not just the laboratory environment. The IPC3 custom controller can provide deterministic performance for DC Linear Actuators in environments with high vibration, flushing, and unstable temperature. Standard controllers often fail under induction spikes generated by heavy loads, while IPC3 integrates powerful H-bridge circuits and real-time current detection capabilities to effectively protect your equipment. We have carefully designed this product to eliminate the integration challenges you may encounter when using universal ready-made modules, ensuring seamless compatibility with PLC and IIoT networks from the beginning.

Engineering advantages

Standard motor drivers often experience thermal runaway when the duty cycle exceeds 50%, resulting in costly shutdowns. However, ActuLift has redesigned the thermal management architecture. We use industrial grade MOSFETs with active duty cycle management function and use conformal coated printed circuit boards (PCBs), which have better corrosion resistance than many competitors such as Progressive Automation or TiMOTION in their base models. Our design integrates XB-series current limit protection, a hardware-level fail-safe that prevents MOSFET thermal runaway during 100% duty cycle surges, ensuring compatibility with various Control Boxes & Controllers standards. This method extends the service life of the entire linear motion system by reducing the impact load. We provide more than just a device; We provide an ecosystem that has been PID tuned and is compatible with Arduino, Raspberry Pi, or dedicated PLCs, ensuring that your firmware logic can execute without delay.

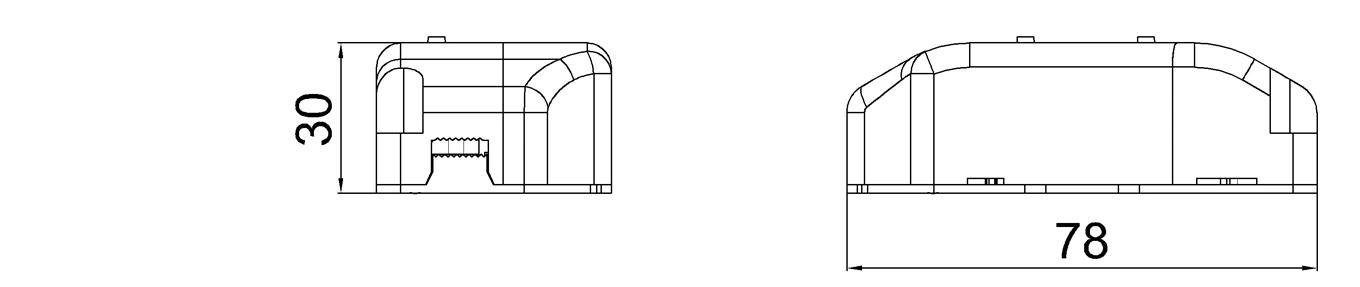

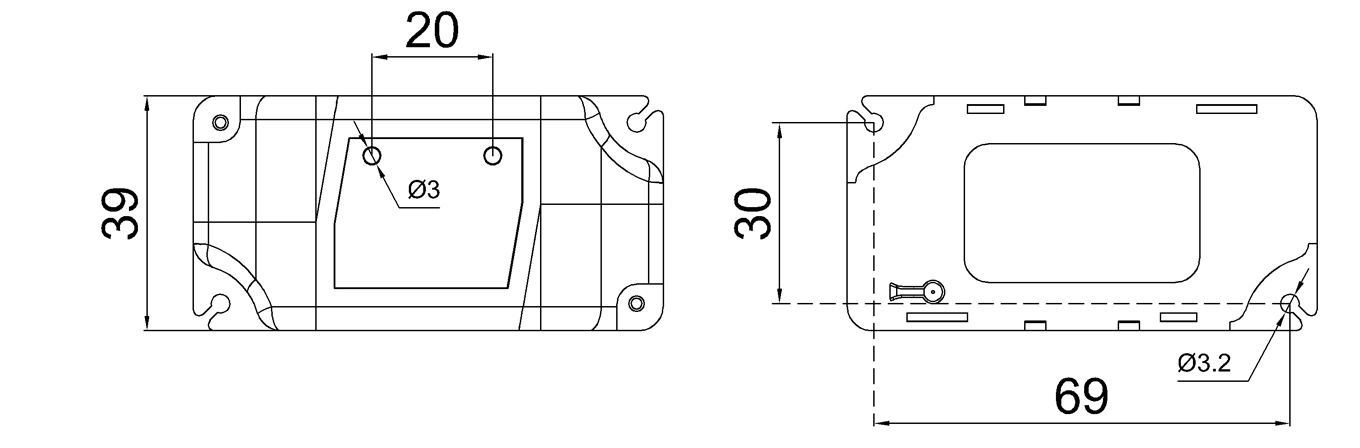

Technical specifications

Actual application scenarios

Imagine a solar tracker array battling strong winds of 60 miles per hour. Ordinary controllers may experience lag, but IPC3 utilizes Hall effect feedback to maintain accurate position feedback even in the event of grid fluctuations. Real time torque regulation through PWM speed control to improve energy efficiency. Imagine again that in a Medical Bed Lift, the comfort level of the patient determines their movement trajectory. Our potentiometer sensor is capable of fine tuning, avoiding the common startup jolts in relay systems. You can achieve multi-point synchronous actuator control to ensure smooth tilting of the workbench and avoid damaging the mechanism. This high precision can reduce warranty claims. Whether you need RS485 communication for factory SCADA systems or simple wired handheld control for agricultural automation, IPC3 can perfectly adapt. We have directly integrated limit switches and analog inputs, eliminating unnecessary external components. For complete system installation, we also provide various U-Type Brackets to ensure mechanical stability.

ActuLift OEM Customization and Global Supply

As an ISO9001:2015 certified manufacturer, ActuLift ensures each IPC3 unit complies with IEC 60601-1 medical safety and NEMA 4X enclosure standards, which means your customized needs will become our production standard. We are not only selling parts, but also committed to working with you to design solutions. You may need specific DIN rail installation configurations or customized firmware to transmit Modbus protocol through the CAN bus interface. We can all meet your needs. Our global supply chain ensures that every device undergoes 100% load testing before export. Our professional engineering team will support you throughout the transition from CAD design to debugging, from prototype to mass production. We are responsible for handling complex matters related to NEMA standards and IEEE compliance, allowing you to focus on system architecture. We comply with RoHS standards and have obtained CE certification, helping you smoothly enter the European and North American markets.

Summary

The IPC3 custom controller provides excellent reliability for critical DC linear actuator applications. We combine robust IP67 sealing performance with advanced programmable motion control technology to propel your automation system forward. Choose ActuLift to achieve precise performance.
