IP70 Micro Linear Actuators Manufacturer | Precision Motion Engineering for Demanding Applications

IP70 micro linear actuators for compact motion systems

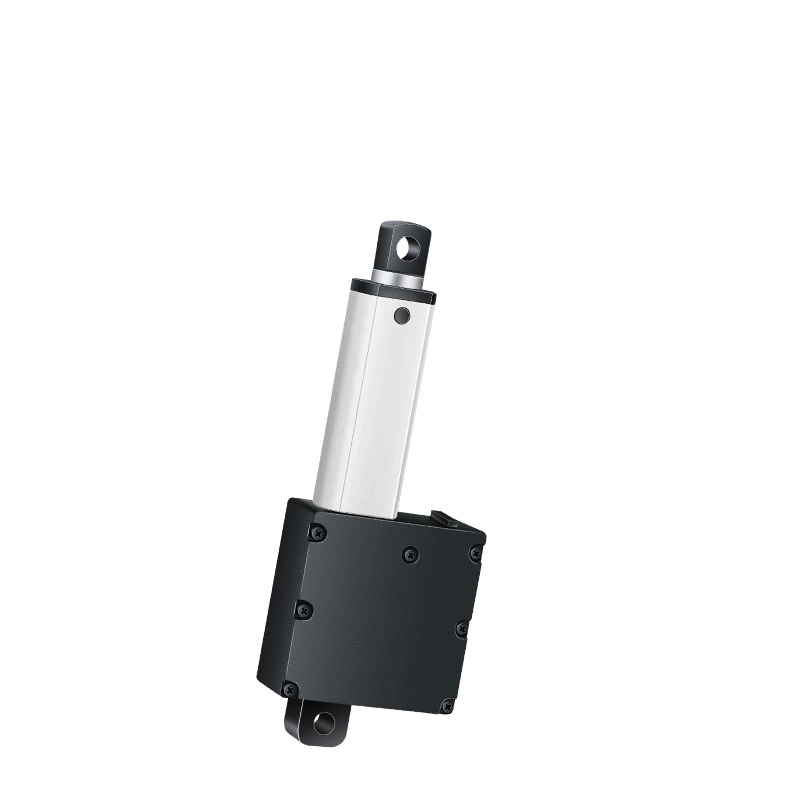

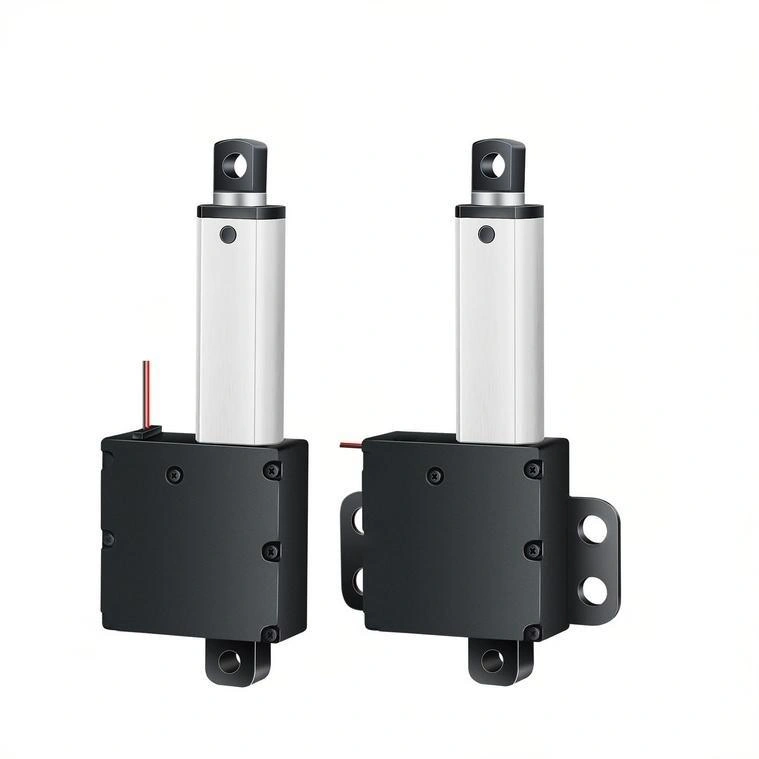

IP70 Micro Linear Actuators are made for OEM projects where the motion needs to be small, quiet, and controlled. Think of compact equipment panels, smart furniture modules, inspection fixtures, instrument adjustment, light-duty automation, and other designs where a full-size actuator would take too much space.

The useful part is the balance. This model supports 12V DC or 24V DC power, works with PWM speed regulation, and handles a listed static load of 150N (33.7 lbs) with a dynamic load of 100N (22.5 lbs). That gives engineers enough force for light mechanical movement without building the product around a large actuator body.

For buyers comparing small actuator families, this model belongs close to ActuLift’s Micro & Mini Linear Actuators category. If your equipment already uses low-voltage DC power, you can also compare it with the 12V Linear Actuators and 24V Linear Actuators ranges.

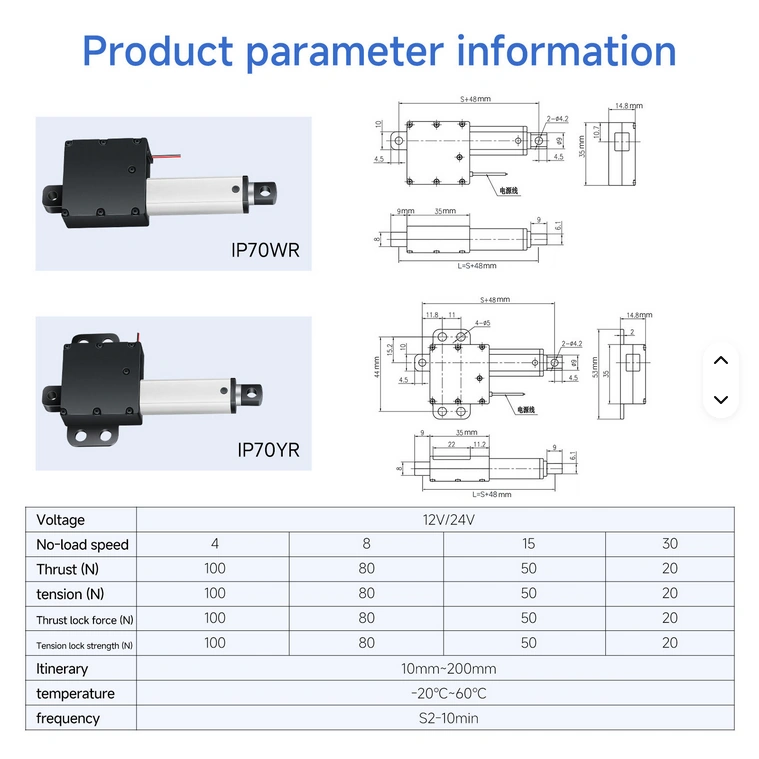

Product specifications

Built for buyers who need small, quiet movement

The IP70 actuator is a good fit when the movement is short, the available space is tight, and the product works near people. At less than 42dB, the actuator can support equipment where noise matters: display adjustment, lab tools, compact medical-equipment subassemblies, office furniture modules, kiosk mechanisms, or small access panels.

The listed 8.5mm/s empty-load speed and 5.2mm/s full-load speed also make the actuator easier to specify. Buyers can compare no-load movement against real working movement instead of guessing how much speed will drop once the mechanism has resistance. That is one of the small details that saves time during sample review.

For control planning, pair the actuator with a suitable driver or controller from ActuLift’s Control Boxes & Controllers range. If the project needs position control, multi-actuator logic, or a more complete system, confirm the controller plan early in the design process.

IP70 dust protection for enclosed equipment

The user brief lists IP70 protection, described as completely dust-proof. For OEM use, this should be treated as enclosure-level dust-protection language, not as a water-resistance claim. IEC explains IP ratings as a system for grading how enclosures resist dust and liquid intrusion under defined tests. Here, the key buyer takeaway is simple: this actuator is positioned for dust-sensitive installations where dirt, powder, fibers, or fine particles could affect motion over time.

If your project has splash, washdown, outdoor, or high-humidity exposure, compare the real environment against ActuLift’s Waterproof Linear Actuators category instead of assuming an IP70 dust rating covers water. Dust and water are not the same problem. Procurement teams should ask for the exact IP documentation, cable-exit details, and installation guidance before approving a production order.

Custom travel from 10mm to 100mm

The travel range runs from 10mm to 100mm, so this is a short-stroke actuator for tight mechanical layouts. That matters for OEM buyers. A 20mm stroke for a lock pin, a 50mm stroke for a small flap, and a 100mm stroke for a guided panel can all behave very differently once brackets, load angle, cable routing, and end stops are added.

Before sample production, confirm these items with engineering:

• Required stroke and retracted length
• Static load and moving load in the real mechanism
• Mounting hole style and bracket position
• Cable exit direction and cable length
• Voltage, current limit, and PWM control method
• Duty cycle and expected operating temperature
• Whether side load can be avoided through guides or linkage design

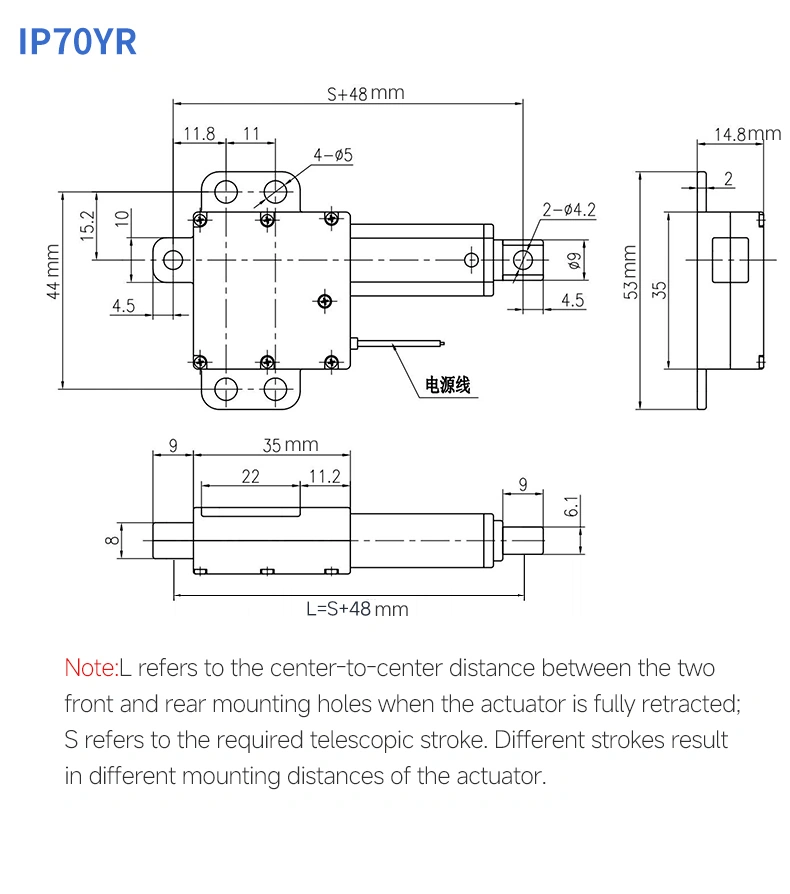

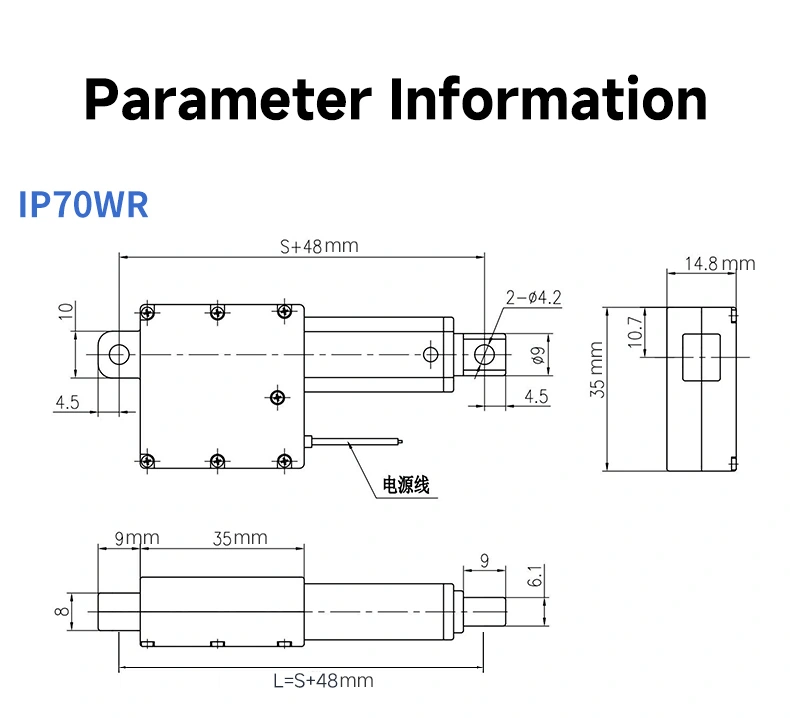

For physical mounting, review the bracket position during drawing approval. A small actuator still needs a clean load path. If the linkage pushes sideways, the problem is usually mechanical design, not just actuator selection.

Procurement notes for OEM and wholesale orders

For wholesale buyers, the IP70 Micro Linear Actuators should be quoted with a full configuration, not only a model name. The buying brief should include voltage, stroke, load, speed target, noise expectation, cable length, connector choice, controller plan, compliance document request, packaging needs, and annual forecast.

The CE and RoHS claims in the brief are useful for import screening. ISO 9001 manufacturing is also useful when a buyer needs process control, repeatable inspection, and supplier-audit support. Still, keep the paperwork practical. Ask for the current declaration, report or certificate copies where applicable, material restrictions information, drawing approval, and sample inspection record before mass production.

FAQ

What is the maximum load capacity?

The listed maximum load capacity is static 150N (33.7 lbs) and dynamic 100N (22.5 lbs). For production use, test the actuator inside the actual mechanism because friction, angle, side load, and linkage geometry can change the working load.

Does the IP70 Micro Linear Actuator support both 12V and 24V?

Yes. The user brief lists 12V DC and 24V DC input options. That gives OEM teams more freedom when matching the actuator to battery systems, power supplies, embedded controllers, or existing low-voltage equipment platforms.

Can speed be controlled with PWM?

The brief states that the actuator is compatible with PWM speed regulation. Buyers should confirm the recommended driver, current limit, PWM frequency range, wiring, and heat behavior before locking the control design.

Is IP70 waterproof?

No water-resistance claim is made in the brief. IP70 is described here as completely dust-proof. If the equipment faces splash, rain, washdown, or condensation, request a separate environmental review and compare waterproof actuator options.

What travel lengths are available?

The requested travel range is 10mm to 100mm, with customizable travel. For a sample order, give the exact stroke in millimeters and confirm the required installation length or drawing before tooling or batch production.

What documents should buyers request?

For OEM purchasing, request the specification sheet, drawing, wiring guide, CE/RoHS documents, ISO 9001 manufacturing reference, sample inspection record, and any actuator-specific test data tied to the selected voltage, stroke, and load.

Why this product works well

IP70 Micro Linear Actuators give OEM teams a small, quiet motion unit with 12V/24V flexibility, PWM speed control, 10mm to 100mm custom travel, and dust-proof positioning. The best fit is compact equipment where clean movement, low noise, tight space use, and clear sample specifications matter more than high-force output or broad outdoor protection.
