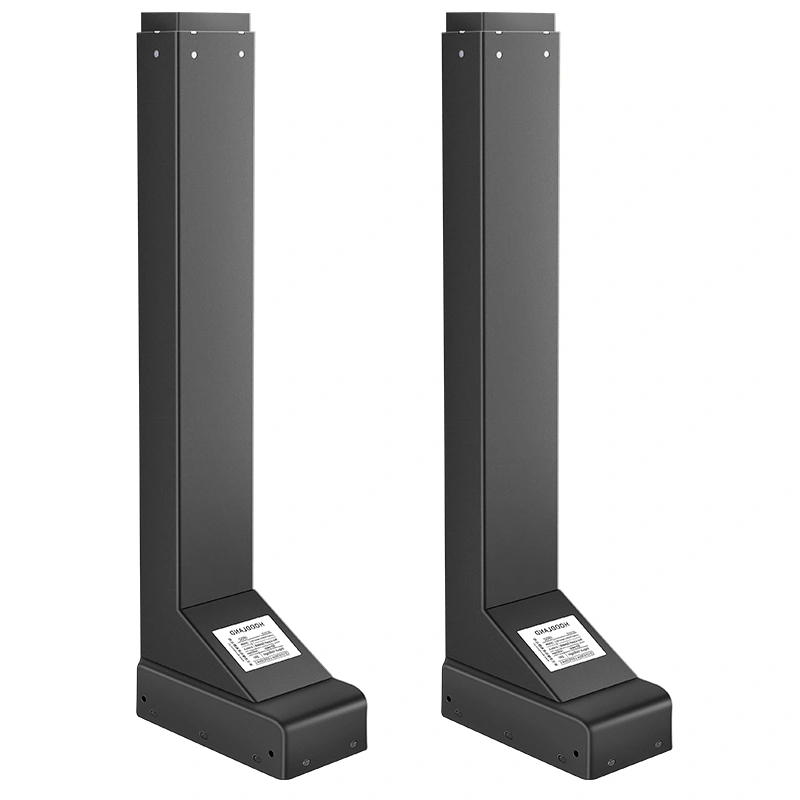

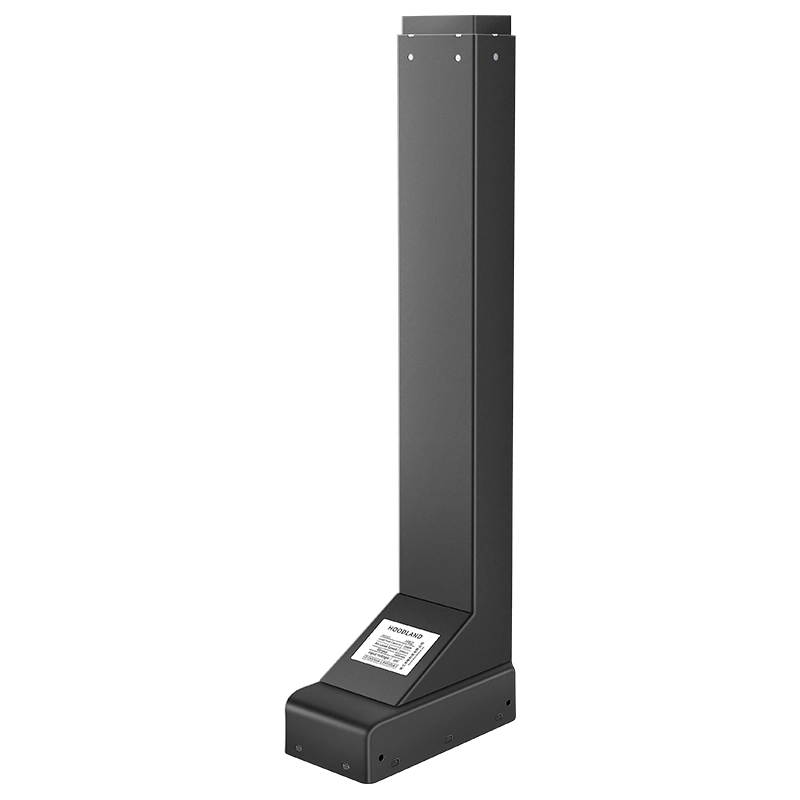

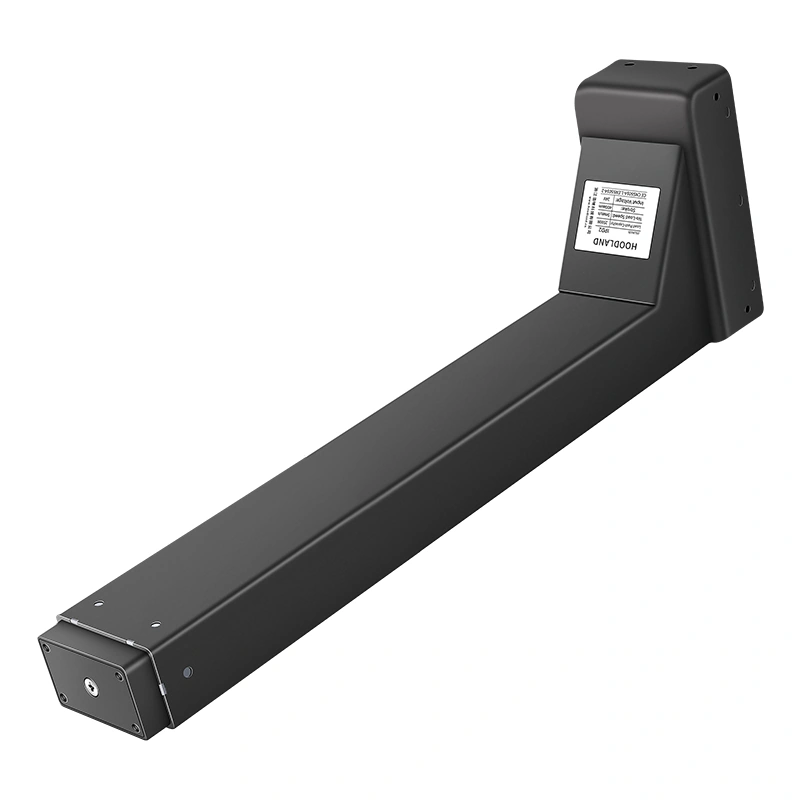

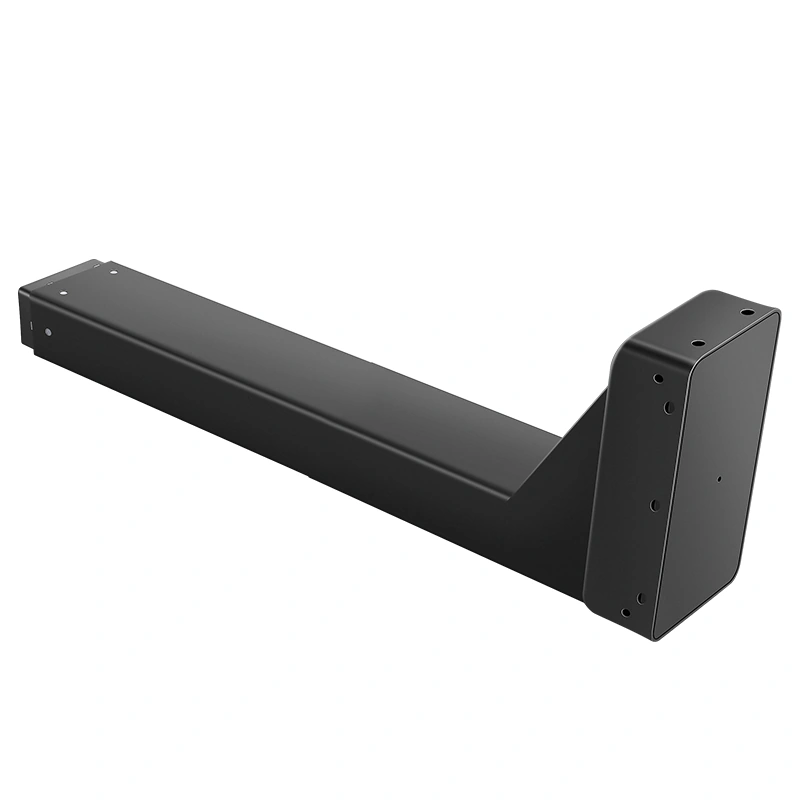

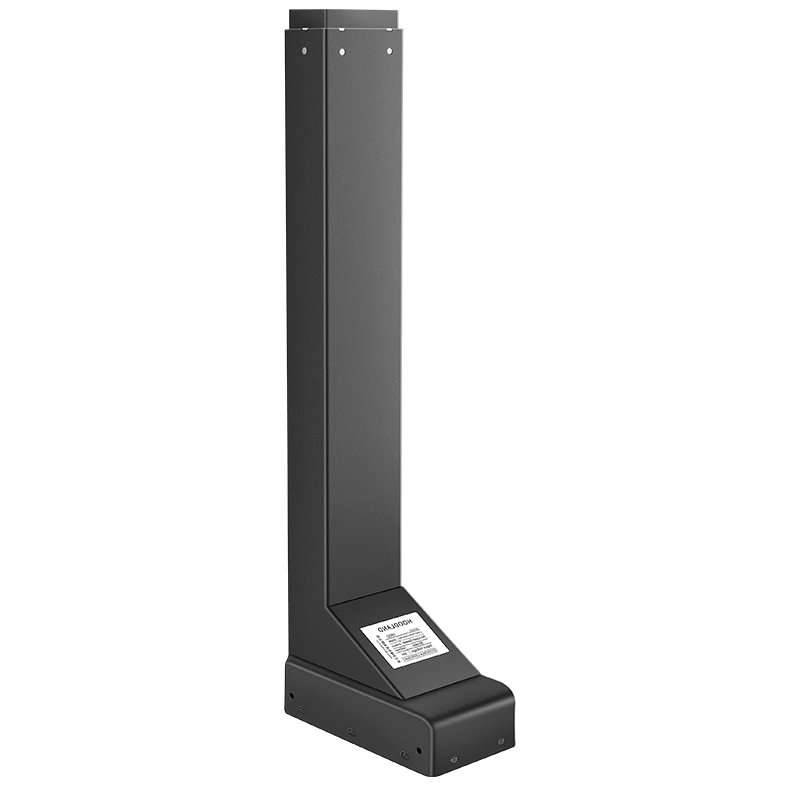

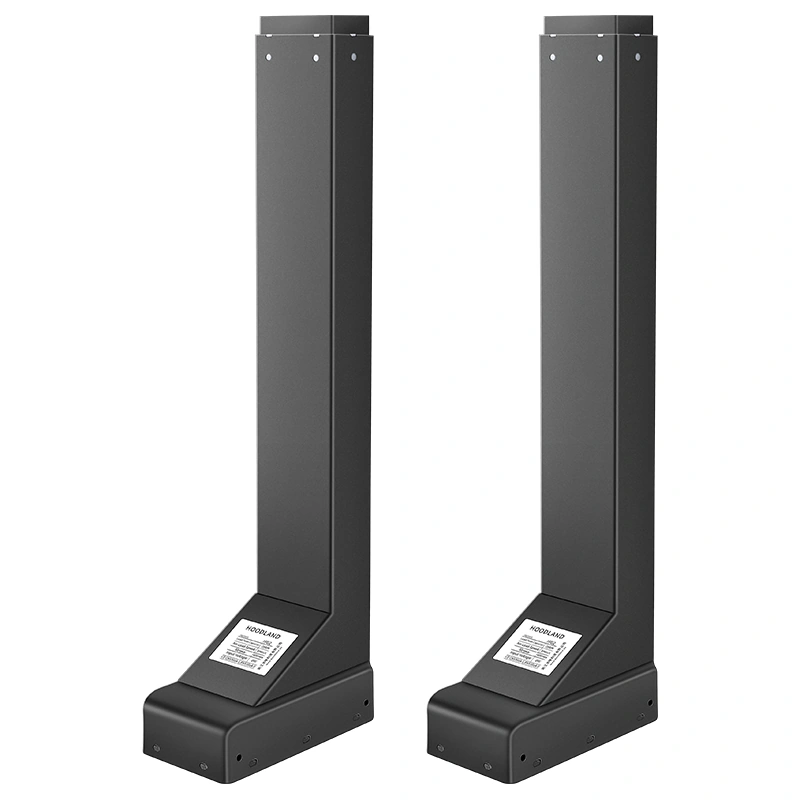

IPF12 telescopic lifting column for quiet low-voltage equipment

The IPF12 Telescopic Lifting Column is built for OEM buyers who need controlled vertical movement in a compact electric column. It runs on 12V/24V DC, carries up to 800N in the standard configuration, and moves at 15mm/s. For many furniture, medical equipment, and indoor device projects, that spec mix is practical: strong enough for steady lifting, quiet enough for close-range use, and simple enough to integrate into a low-voltage system.

This is a procurement-focused lifting column, not a one-size-fits-all retail part. Buyers can start from the standard 500mm travel length, then discuss a customizable travel actuator option when the equipment frame needs a different lift range. For projects that need more force, ActuLift can also discuss a customizable heavy-duty lifting column option.

If your project is still at the design stage, place IPF12 beside ActuLift’s أعمدة رفع تلسكوبية category first. It helps your engineering and sourcing teams compare the product against other vertical motion columns before sample approval.

مواصفات المنتج

What buyers should notice before sampling

The first detail is the power platform. IPF12 supports 12V/24V DC, so it can fit low-voltage equipment designs that already use DC power. That matters for smart furniture, care equipment, and compact machinery where the buyer wants a cleaner system layout with matched controllers, wiring, and handsets.

The second detail is the motion profile. A 15mm/s lifting speed is not trying to be a high-speed industrial actuator. It is better suited to steady height movement, controlled extension, and quieter user-facing equipment. Based on the listed acoustic value, the column is designed for <48dB operation, which is useful when the lift sits near people instead of inside a noisy production area.

The third detail is the protection level. Standard IP43 can fit many indoor builds. For harsher settings, ask for an IP54 protection level lifting column or an IP66 waterproof actuator configuration during quotation. That wording is important. Don’t let the project team treat the standard IP43 model as if it already covers washdown, outdoor exposure, or sealed medical cleaning needs.

For matching control hardware, ActuLift’s صناديق التحكم ووحدات التحكم و يتواصل التحكم عن بُعد وأجهزة التحكم are useful internal reference points during system planning.

OEM customization and integration points

For wholesale and OEM work, the IPF12 page should not stop at the base model. The real buying question is whether the column can be tuned to the equipment envelope. Start with these checks:

• Required travel length compared with the 500mm standard stroke
• Expected working load compared with the 800N rated capacity
• 12V or 24V system voltage
• Indoor IP43 use or a request for IP54/IP66 protection
• Controller, handset, cable, and mounting layout
• Noise target inside the final housing
• Compliance documents needed for the destination market

If the project uses other low-voltage motion parts, the محركات خطية 12 فولت و محركات خطية 24 فولت categories can help buyers keep voltage choices consistent across the equipment family. If the final device may face moisture, the مشغلات خطية مقاومة للماء category is also worth reviewing before confirming the protection level.

Suitable B2B use cases

IPF12 makes the most sense in equipment where vertical motion must feel controlled and quiet. Typical directions include adjustable furniture, smart home lift mechanisms, medical or care-related equipment frames, compact lifting platforms, and other indoor OEM devices that need a telescopic electric column rather than an exposed linear actuator.

For heavier or more industrial equipment, buyers should not stretch the standard spec beyond its comfort zone. Ask ActuLift to confirm whether a custom heavy-duty lifting column is the better route, then compare the project against industrial or mobile column lift options before sample approval.

ملاحظات الامتثال والتوريد

The supplied brief states that IPF12 is compliant with CE and RoHS standards. In B2B sourcing, treat that as component-level documentation to request and file, not as proof that the full finished machine has completed all market approvals. Buyers should confirm the exact model, voltage, protection level, cable setup, and control configuration shown in the declaration or test documents.

For IP protection, use the same discipline. IP ratings describe enclosure resistance to solid objects and liquids. Standard IP43, optional IP54, and optional IP66 should be quoted as separate configurations. This keeps the purchase order clean and reduces the risk of receiving a column that is right on load and travel but wrong for the working environment.

الأسئلة المتكررة

Can IPF12 be supplied in both 12V and 24V DC?

Yes. The listed input voltage is 12V/24V DC. Buyers should confirm the final voltage during quotation so the column, controller, power supply, and wiring match the equipment design.

What is the standard load capacity?

The standard maximum load capacity is 800N. If the equipment needs more force, ask ActuLift about the customizable heavy-duty lifting column option before sample ordering.

What travel length does the IPF12 use?

The listed travel length is 500mm. A customizable travel actuator option is available, so OEM buyers should provide the target stroke and installation envelope during the RFQ stage.

Is IPF12 waterproof?

The standard protection level is IP43. ActuLift can provide an IP54 protection level lifting column or IP66 waterproof actuator upon request. Confirm the needed rating before ordering if the device faces water, cleaning, or outdoor exposure.

Is the column quiet enough for indoor equipment?

The listed acoustic characteristic is <48dB, described as library grade silence. Final noise still depends on mounting, load, housing resonance, and controller behavior, so buyers should test the sample inside the real structure.

What should an OEM buyer send before quotation?

Send the required load, travel length, voltage, duty use, protection level, control method, mounting space, cable length, target quantity, and any CE/RoHS document needs. A drawing or equipment photo helps the engineering team avoid guesswork.

لماذا يعمل هذا المنتج بشكل جيد

IPF12 is a practical OEM lifting column when the project needs 12V/24V DC input, 800N lifting force, 500mm travel, quiet motion, and a clear upgrade path for IP54 or IP66 protection. It gives buyers a clean baseline for samples while leaving room to customize travel, load, controls, and protection level before bulk production.
