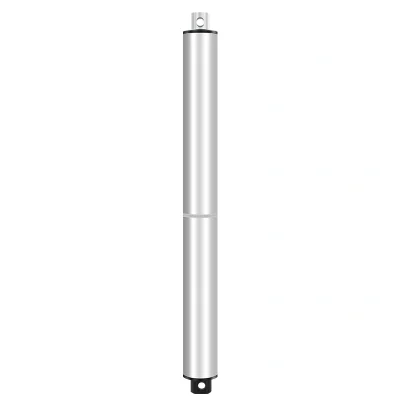

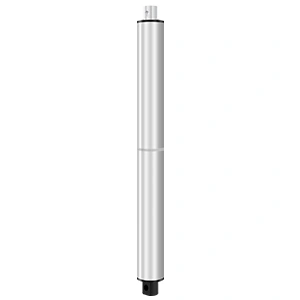

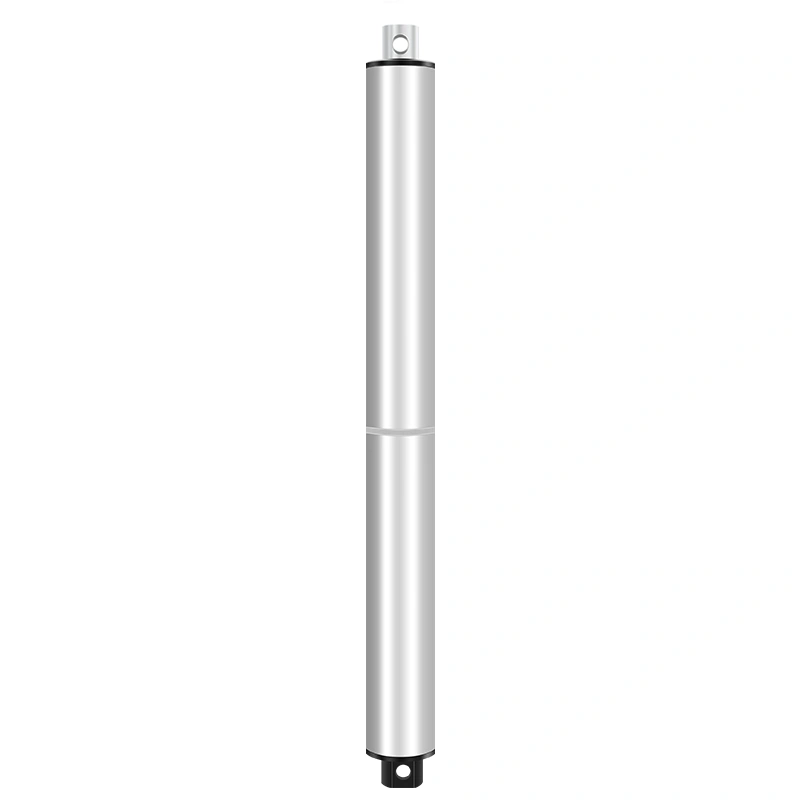

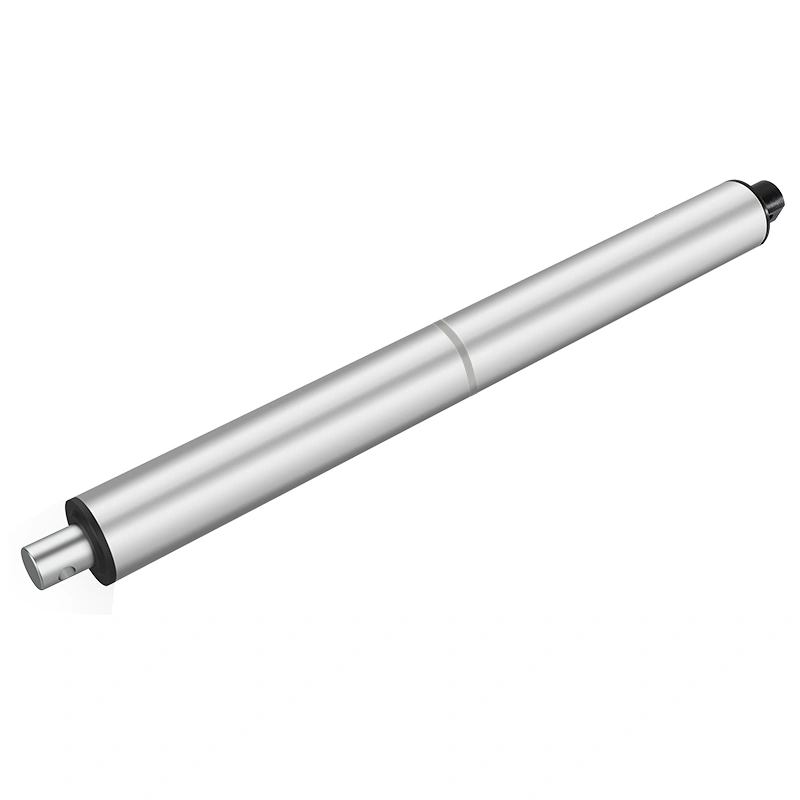

IP40L แอคทูเอเตอร์ไฟฟ้าหนัก OEM | การเคลื่อนไหวที่แม่นยำสำหรับสภาพแวดล้อมในอุตสาหกรรมที่มีความต้องการสูง

IP40L heavy duty electric actuator for compact 2000N linear motion

The IP40L Heavy Duty Electric Actuator is built for OEM equipment teams that need strong, controlled linear movement in a compact body. It is a 24V DC electric linear actuator with a maximum load capacity of 2000N, or about 450 lbs. For projects with a different power architecture, 12V and 48V versions can be provided upon request.

This model fits industrial automation, access panels, adjustable equipment frames, compact lifting structures, and other machines where space is tight but the actuator still has to push or pull real weight. The aluminum alloy outer housing and aluminum inner tube help keep the structure practical for equipment integration, while the built-in internal limit switches support controlled end-position stopping.

For buyers comparing กระตุ้นเชิงเส้นที่มีน้ำหนักมาก, IP40L is a useful option when the project calls for higher force than a light-duty actuator but still needs a compact installation footprint. The listed speed range is 4-16mm/s, depending on the load configuration, so the best version should be confirmed against the real load, stroke, mounting angle, and duty cycle of the final equipment.

ข้อมูลจำเพาะของผลิตภัณฑ์

Built for OEM actuator selection, not guesswork

For B2B buyers, the important part is not only the 2000N force rating. It is whether the actuator fits the working geometry of the product. IP40L gives procurement and engineering teams a clear starting point: 24V DC input, customizable 50-800mm travel, optional voltage changes, and protection options from IP54 to IP66.

If your equipment already uses a 24V system, you can review IP40L alongside other อุปกรณ์กระตุ้นเชิงเส้น 24V and then confirm stroke, connector, bracket, controller, and test-sample requirements. If the project needs an outdoor-adjacent or washdown-prone enclosure, ask for the optional IP66 configuration and confirm whether the final installation also protects the cable entry, mounting points, and control system.

The actuator’s listed noise level is below 50dB. That matters in indoor equipment, office-adjacent machines, medical-adjacent furniture, retail fixtures, and adjustable workstations where loud movement can make the product feel rough even when the mechanism works. Keep the final noise target realistic, though. Mounting structure, load balance, and surrounding panels can all change what users hear.

Customization points for wholesale and private-label projects

IP40L can be specified around the main points buyers usually need before quotation: voltage, travel length, speed/load target, protection level, and mounting arrangement. The standard input is 24V DC. If your product platform uses 12V or 48V, note that in the RFQ so the engineering team can check feasibility before sample production.

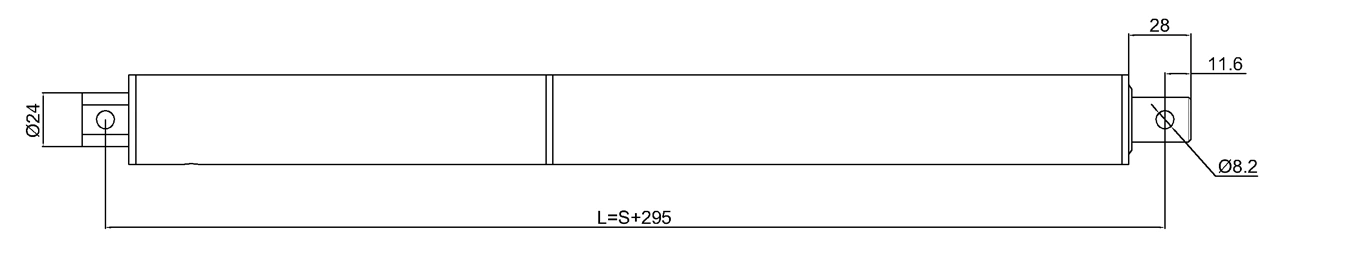

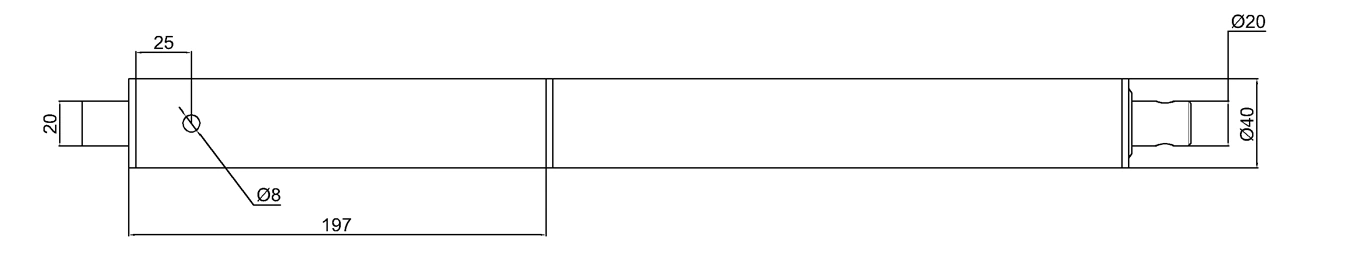

Travel length can be customized from 50mm to 800mm. For new OEM projects, we suggest giving the supplier a drawing or at least a simple movement sketch. Include retracted length limits, extended length target, mounting-hole position, load direction, duty cycle, and any side-load risk. That one extra page can save a long back-and-forth later.

Mounting hardware also deserves early attention. IP40L may need a clevis, flat base, or project-specific bracket depending on the machine frame. Buyers can review available เพื่อให้แน่ใจว่ามีการรวมทางกลที่ไม่ราบรื่น. while preparing the actuator inquiry, then confirm the exact bracket against the actuator end fitting and installation angle.

Protection, control, and system fit

The standard IP54 protection level fits many indoor or covered equipment builds where dust and water splashes are the main concern. Optional IP66 is available for harsher environments, but it should be treated as a configuration choice, not a blanket promise for every use case. The full machine still needs proper sealing, cable protection, drainage planning, and controller placement.

For projects that need more environmental resistance, the buyer can compare IP40L with ActuLift’s กระตุ้นเชิงเส้นกันน้ำ category before final model selection. For multi-actuator systems, check the controller plan early. A high-load actuator may need a suitable control box and controller rather than a simple switch, especially if the machine needs synchronized movement, current protection, or a cleaner operator interface.

If the product needs user-facing operation, pair the actuator plan with the right รีโมทคอนโทรลและแฮนด์เซ็ต. This is where many projects get messy: the actuator works, but the interface, cable layout, and power supply were chosen late. For OEM production, it is better to test the complete motion set as one system.

Procurement notes before ordering IP40L

Before placing a bulk order, confirm five items with the supplier: real load, stroke length, target speed, protection level, and control method. Add the operating temperature range if the product will be used outside normal indoor conditions. IP40L is listed for 0 °C to +40 °C, so buyers should not assume it is suited for colder or hotter sites without an engineering check.

For sampling, send the most honest version of the use case. Is the actuator pushing vertically, pulling a hinged cover, moving a sliding tray, or lifting an off-center load? Does the mechanism create side load? How long does one movement cycle run? These details affect the right speed/load setup and help the supplier avoid a configuration that looks fine on paper but struggles in the product.

ทำไมผลิตภัณฑ์นี้ถึงทำงานได้ดี

IP40L works well for OEM buyers who need a compact heavy-duty actuator with clear configuration choices. The 2000N load rating, 50-800mm customizable travel, standard 24V DC input, optional 12V/48V versions, optional IP66 protection, and <50dB noise level give engineers a practical base for machinery, access panels, adjustable frames, and equipment integration without overcomplicating the quotation brief.
