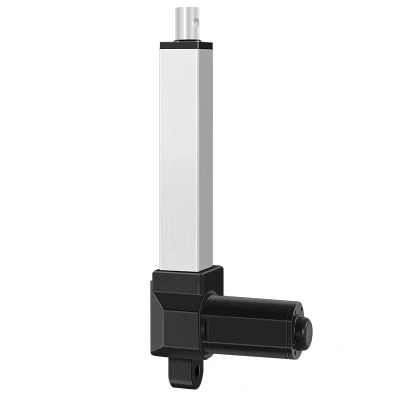

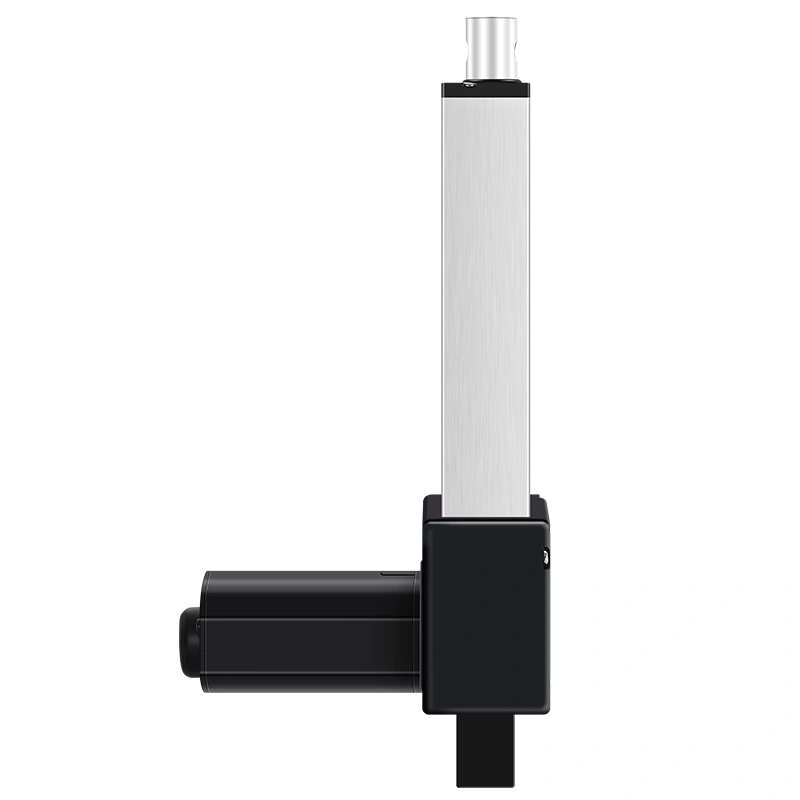

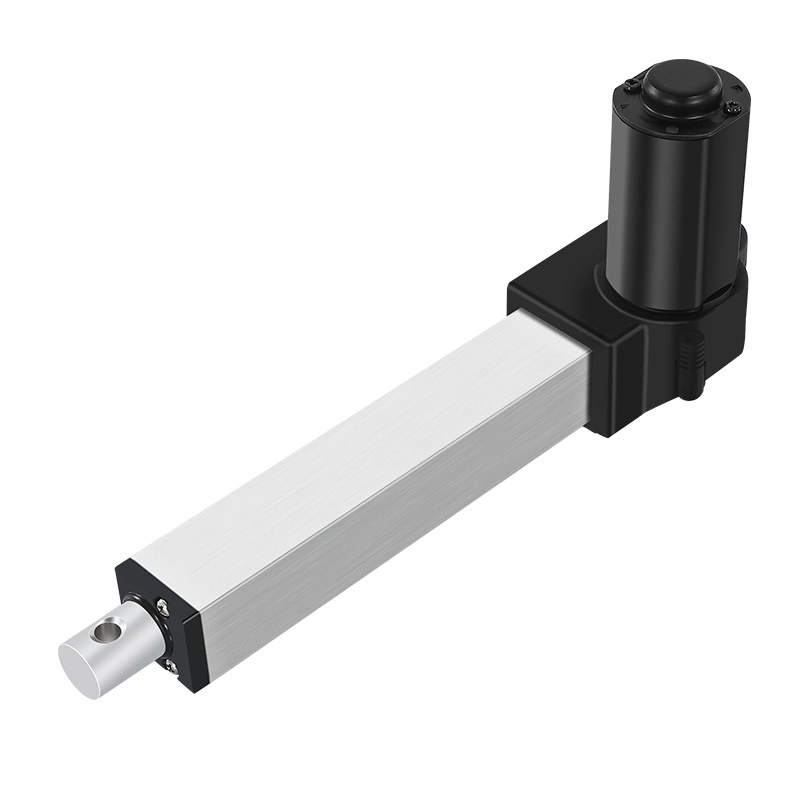

IP3000X ผู้จัดจำหน่ายแอคทูเอเตอร์เชิงเส้น DC 24V | การควบคุมการเคลื่อนไหวที่แม่นยำ

24V DC linear motion for equipment that needs quiet force

The IP3000X 24V DC Linear Actuator is built for OEM buyers who need controlled push/pull motion without turning the machine into a noise problem. The core configuration is straightforward: 24V DC input, 1000N maximum push/pull load, 30mm to 1000mm customizable travel, and a variable speed range from 5 to 52 mm/s.

That combination makes it a practical fit for medical equipment, ergonomic furniture, industrial automation modules, access panels, lifting devices, and other systems where the actuator has to move with control instead of drama. Based on the listed specs, the less than 45 dB acoustic level is one of the cleaner selling points. It gives buyers a better starting point for equipment used near patients, operators, or office workers.

For projects already built around a 24V architecture, this model sits naturally with ActuLift’s อุปกรณ์กระตุ้นเชิงเส้น 24V category. If the equipment platform uses lower-voltage battery power or a different controller architecture, the optional 12V version can be reviewed during engineering confirmation through the อุปกรณ์กระตุ้นเชิงเส้น 12V ช่วง

ข้อมูลจำเพาะของผลิตภัณฑ์

What B2B buyers should check before sampling

For a wholesale or OEM order, the IP3000X should be specified as part of a complete motion system. Start with the required load at the moving point, then confirm the needed travel length, target speed, mounting geometry, duty cycle, cable exit, controller type, and final enclosure requirement.

The 1000N push/pull rating is useful for medium-force motion. Still, buyers should avoid treating it as a free pass for every layout. Side load, uneven linkage, poor bracket alignment, or an oversized moving structure can shorten service life. This is where ActuLift’s เพื่อให้แน่ใจว่ามีการรวมทางกลที่ไม่ราบรื่น. category matters. The actuator is only as steady as the hardware holding it.

Speed also needs a real application check. A fast no-load setting can look good on paper, but the final mechanism may need a slower, more controlled stroke under working load. For batch projects, ask for the speed/load curve or sample test data tied to the selected stroke, voltage, and mounting direction.

Custom travel length and integration options

The broad 30mm to 1000mm travel range gives the IP3000X room to fit many equipment layouts. Shorter strokes suit compact adjustment points, access panels, and furniture mechanisms. Longer strokes can support lift, tilt, or extension tasks where the actuator needs more reach.

Because the stroke is customizable, procurement should lock the travel length before sample approval. Once a made-to-order actuator is produced, buyers should not assume the stroke can be changed in the field. The live product page also treats IP3000X as a custom production item, so the cleanest buying process is: define the engineering requirement, approve the drawing, test the sample, then freeze the production spec.

If the actuator will run as part of a larger motion platform, pair it early with the right กล่องควบคุมและตัวควบคุม and, when needed, รีโมทคอนโทรลและแฮนด์เซ็ต. This avoids late-stage problems with voltage, current, wiring, travel control, and user operation.

IP43 standard protection with optional IP66

The standard IP43 rating is best treated as a baseline enclosure protection level for controlled environments. It may suit indoor equipment, guarded mechanisms, and applications where the actuator is not exposed to direct washdown or severe outdoor conditions.

For harsher environments, request the optional IP66 version and confirm the exact sealing, cable, connector, and installation requirements. IEC guidance frames IP ratings as resistance grades against dust and liquid intrusion under defined tests. That is useful language for engineering, but it does not replace final-device validation. If the product will face rain, spray, cleaning water, dust, or outdoor temperature swings, review the optional IP66 build before sample order.

Buyers comparing IP3000X with broader actuator families may also want to review ActuLift’s กระตุ้นเชิงเส้นกันน้ำ category. It gives the purchasing team a better reference point when the main risk is environmental exposure rather than load alone.

CE and RoHS wording for procurement files

The user-provided specification says the IP3000X is compliant with CE and RoHS standards. That wording is useful for B2B product pages, but procurement teams should still request the current declaration, test documents where available, and model-specific paperwork before mass production or import.

For CE, the European Commission describes the mark as a manufacturer declaration that a product meets applicable legal requirements for the EEA. It is not an EU approval stamp. For RoHS, the same buyer file should confirm restricted-substance compliance for the electrical and electronic parts used in the selected build.

That conservative wording protects both sides. It gives distributors and OEM buyers the compliance terms they need while keeping the product page away from claims that only a final equipment review can support.

Best-fit applications

The IP3000X works best in applications that need controlled linear force, quiet movement, and configurable travel. Good-fit examples include adjustable medical or care equipment, ergonomic furniture, industrial fixtures, smart furniture mechanisms, automation panels, inspection devices, and medium-force positioning systems.

It is also a sensible option for buyers who need custom production instead of a purely off-the-shelf actuator. The model belongs naturally with ActuLift’s แอคทูเอเตอร์พร้อมฟีดแบ็ก/คอนโทรลเลอร์ category when the final equipment needs travel control, user commands, or system-level integration.

Buyer checklist before quotation

• Confirm voltage: 24V DC standard, optional 12V if the system requires it.
• Confirm load direction and real working load, including linkage and side-load risk.
• Choose travel length from 30mm to 1000mm and freeze it before sample approval.
• Select target speed within the 5 to 52 mm/s range based on the loaded mechanism.
• Choose IP43 standard or request optional IP66 for harsher environments.
• Match controller, handset, wiring, bracket, and mounting direction during design review.
• Request CE/RoHS documents for the exact supply configuration.
• Test samples in the actual mechanism before approving bulk production.

ทำไมผลิตภัณฑ์นี้ทำงานได้ดี

The IP3000X is a strong fit when an OEM buyer needs 1000N push/pull force, quiet movement, and a long customizable travel range in a 24V DC actuator. Its best value is practical integration: selectable stroke, optional 12V, optional IP66, and clear CE/RoHS compliance wording that procurement teams can place into supplier files before sampling or mass production.
