Stepper-driven linear motion for OEM equipment

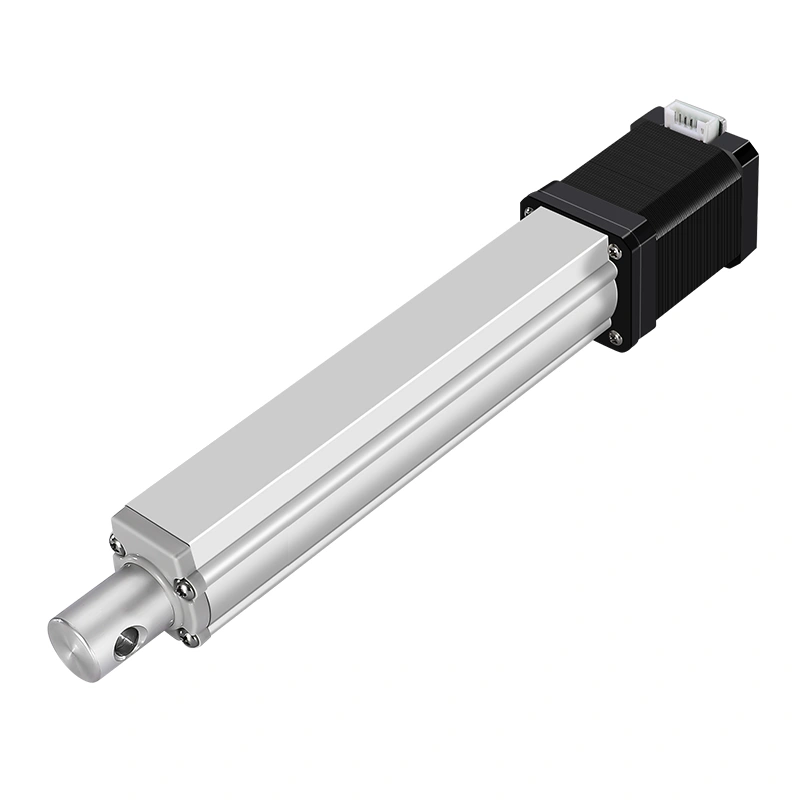

The IP42 Stepper Motor Linear Actuator is built for OEM teams that need controlled push-pull motion with custom travel and a wide DC input range. Based on the supplied specification, it supports 9-32V DC input and a travel length from 50mm to 1000mm. That range gives design teams room to use the same actuator family across several equipment sizes, provided the final load, speed, and installation details are confirmed before sample approval.

This is a better fit for equipment builders than for casual replacement buyers. A stepper actuator is part of a system. The actuator body, stepper motor driver, power supply, controller, feedback signals where applicable, brackets, and cable routing all affect the final result. If your project needs a dedicated stepper category comparison, start with ActuLift’s แอกทูเอเตอร์มอเตอร์สเต็ปเปอร์ page. For low-voltage motion platforms, the แอกทูเอเตอร์เชิงเส้น 24V range is also useful when the design runs around a 24V power architecture.

ข้อมูลจำเพาะของผลิตภัณฑ์

What buyers should confirm before sample order

For this actuator, the most important buying detail is what ActuLift does not reduce to one fixed number. Load capacity, no-load speed, full-load speed, MTBF, working temperature, and acoustic behavior should be checked against the current configuration-specific datasheet or confirmed with ActuLift Engineering Department. That is the right approach for a configurable actuator because a 50mm stroke, a 500mm stroke, and a 1000mm stroke do not create the same mechanical risk.

Before requesting a quotation, send the load direction, target stroke, retracted length target, extended length target, duty cycle, expected speed, power supply, driver type, controller logic, installation angle, mounting points, cable route, and working environment. If the application uses feedback or a more complete motion-control system, compare the actuator with ActuLift’s แอกทูเอเตอร์พร้อมฟีดแบ็ก/คอนโทรลเลอร์ category and review compatible กล่องควบคุมและคอนโทรลเลอร์ early.

Mounting deserves the same care. The local ActuLift catalog warns against side load in related actuator families, and that rule matters here too. If the structure pushes sideways on the rod, the project can fail even when the actuator force looks correct on paper. Use suitable ขาและติดตั้ง and add guides or linkages where the moving load needs extra support.

IP42 protection and application fit

IP42 is an enclosure-protection classification under IEC 60529. It should not be described as waterproof. For the selected IP42 configuration, confirm the current datasheet, test basis, enclosure details, and intended operating environment before sample or production approval.

For indoor or otherwise protected equipment, evaluate the actual exposure conditions rather than assuming the IP code alone determines suitability. If the project involves rain, water jets, condensation, cleaning fluids, or outdoor duty, review the environment with ActuLift Engineering and compare the แอกทูเอเตอร์เชิงเส้นกันน้ำ category before approving the actuator for production.

Stepper motor integration notes

Related catalog and wiring materials include stepper-driver connection and signal-interface references. Do not assume the selected IP42 build includes feedback or a particular limit-signal implementation; confirm the wiring diagram, interface definition, and selected configuration before prototype integration.

Ask for the wiring diagram, driver recommendation, signal definition, current requirements, limit behavior, cable length, connector option, and control sequence before building your prototype. If the actuator will run in a product family, standardize the driver and connector early. Small wiring differences across batches can make service work messy later.

Stepper-driven motion can be useful when the mechanism needs repeatable movement, controlled travel, or a clearer relationship between motor command and actuator movement. Still, the final control quality depends on load, driver setup, power supply stability, mechanical friction, and whether the system needs feedback. Keep those checks in the engineering review rather than assuming the motor type solves the whole motion problem by itself.

OEM and wholesale sourcing notes

For bulk purchasing, quote the IP42 Stepper Motor Linear Actuator by configuration. A useful RFQ should include the exact stroke, voltage range, target load, target speed, working angle, duty cycle, driver plan, controller plan, mounting type, cable and connector request, environmental exposure, annual forecast, packaging needs, and required documents.

If CE or RoHS documentation is required for the project, request the current model-specific declaration or material-compliance records, confirm the covered configuration, and keep those documents with the sample approval package. Documentation for a component does not by itself determine the compliance obligations of the buyer’s finished equipment or destination market.

คำถามที่พบบ่อย

What input voltage does the IP42 Stepper Motor Linear Actuator support?

The supplied specification lists 9-32V DC input. That wide input range can help OEM teams working across low-voltage platforms, but the final power supply, driver, current draw, and control logic should be confirmed for the selected configuration.

ความยาวการเดินทางมีให้เลือกเท่าไหร่?

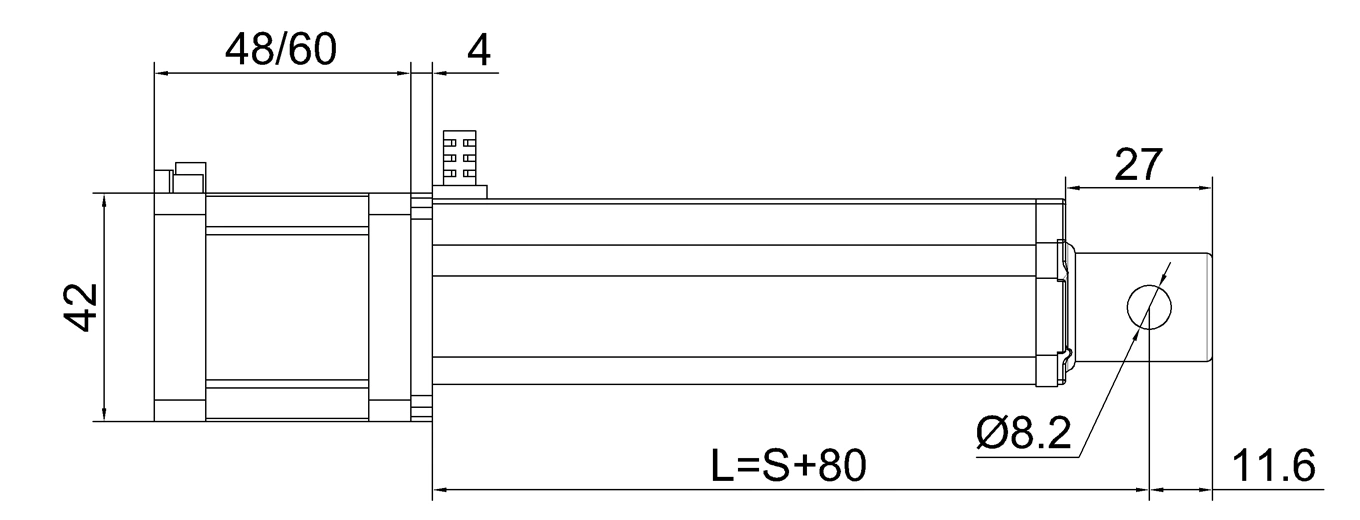

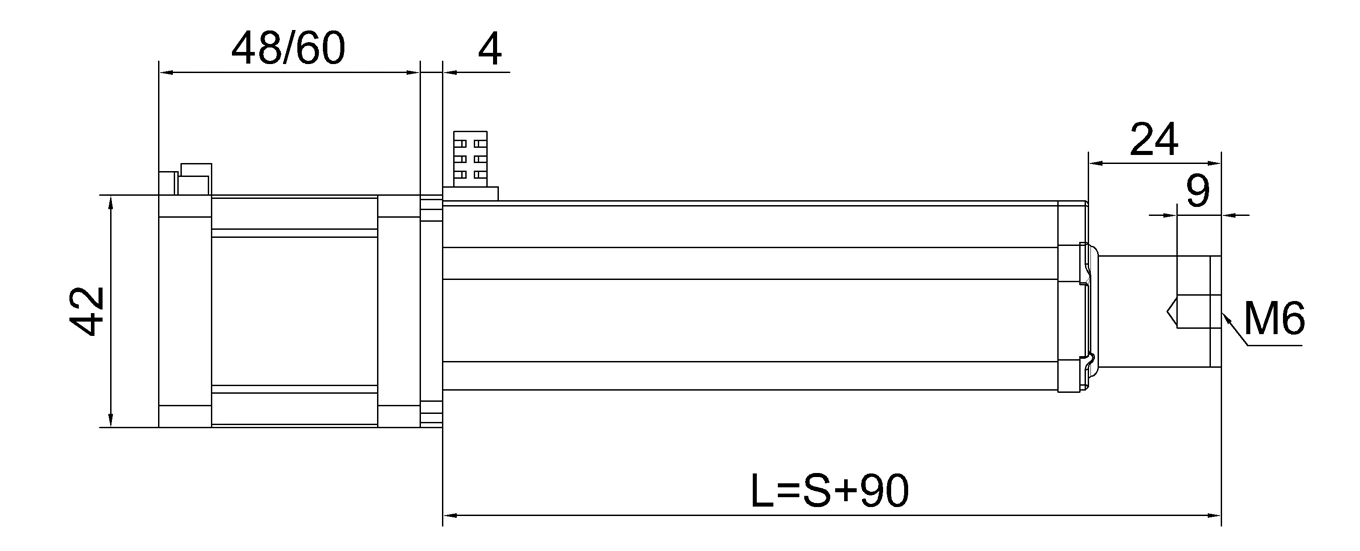

The travel length is 50mm to 1000mm and can be customized. For sample order, give the exact stroke and ask for the corresponding installation length, drawing, cable route, and tolerance information.

Where can buyers find load and speed data?

Load and speed depend on the selected configuration. Request the current configuration-specific datasheet or engineering confirmation for the load curve, speed curve, and any MTBF assumptions needed for the application.

Is IP42 waterproof?

No. IP42 is an enclosure-protection classification and should not be treated as a waterproof claim. For outdoor, washdown, or high-humidity equipment, ask ActuLift Engineering to review the environment and compare waterproof actuator options.

What should be checked before mass production?

Check the datasheet, drawing, wiring guide, load curve, speed curve, MTBF assumptions, working-temperature tolerance, acoustic tolerance, CE/RoHS documents, sample inspection record, and any application-specific engineering notes.

Can the actuator be paired with controllers and feedback systems?

Controllers and feedback-related interfaces are configuration-dependent. Confirm the selected driver, controller, signal definitions, limit behavior, and whether any feedback device is actually included before locking the electrical design.

ทำไมผลิตภัณฑ์นี้ทำงานได้ดี

The IP42 Stepper Motor Linear Actuator gives OEM buyers a configurable 9-32V DC motion platform with 50mm to 1000mm custom travel and stepper-driver integration potential. Before moving from sample to batch production, confirm load, speed, feedback interfaces, protection details, temperature and acoustic limits, controller fit, mounting details, and any required CE/RoHS documentation for the selected configuration.
