The U-Type Linear Actuator Mount is a mechanical mounting accessory for DC linear actuator systems. It gives the actuator a secure pivot point, which matters when the actuator has to extend and retract through a changing angle instead of pushing in a perfectly fixed straight line.

For OEM buyers, this is the kind of small part that can decide whether a prototype feels clean or awkward. The actuator may have the right force, stroke, voltage, and controller. If the mount does not match the pin point, frame material, and motion path, the assembly can still bind, flex, or send side load into the actuator rod.

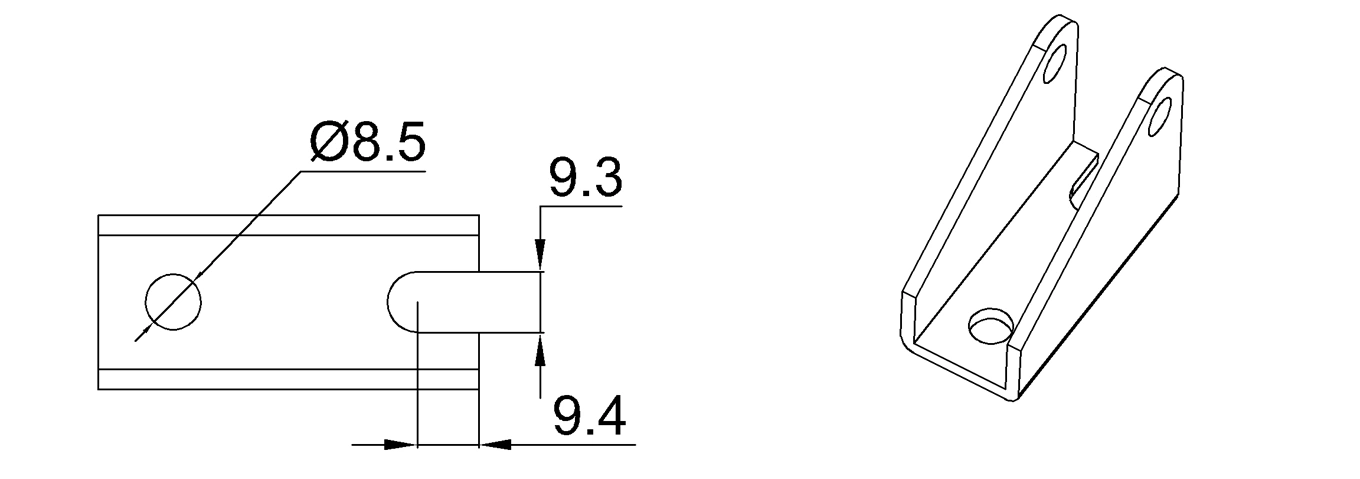

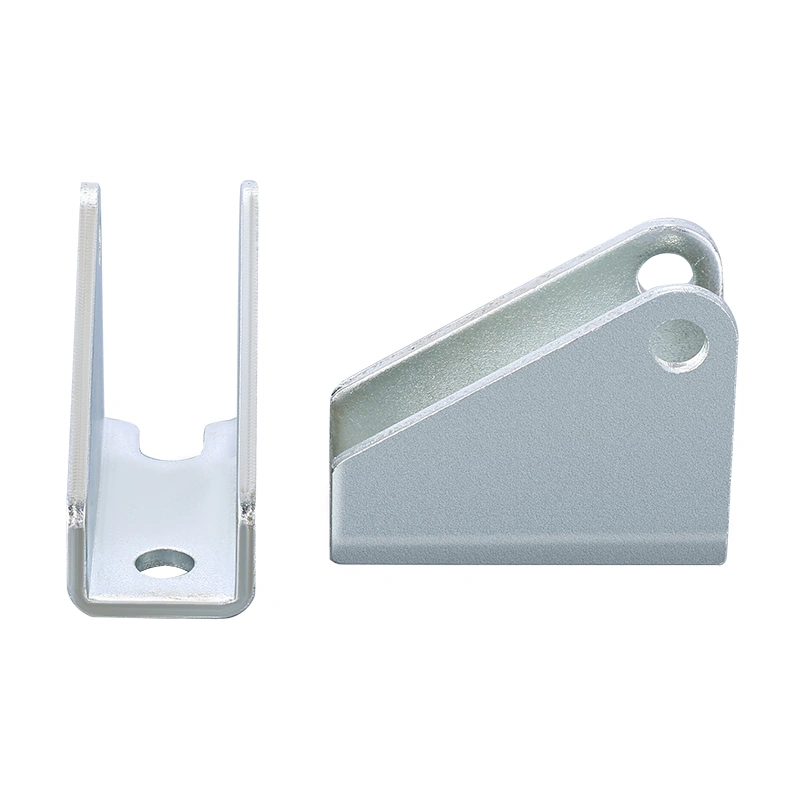

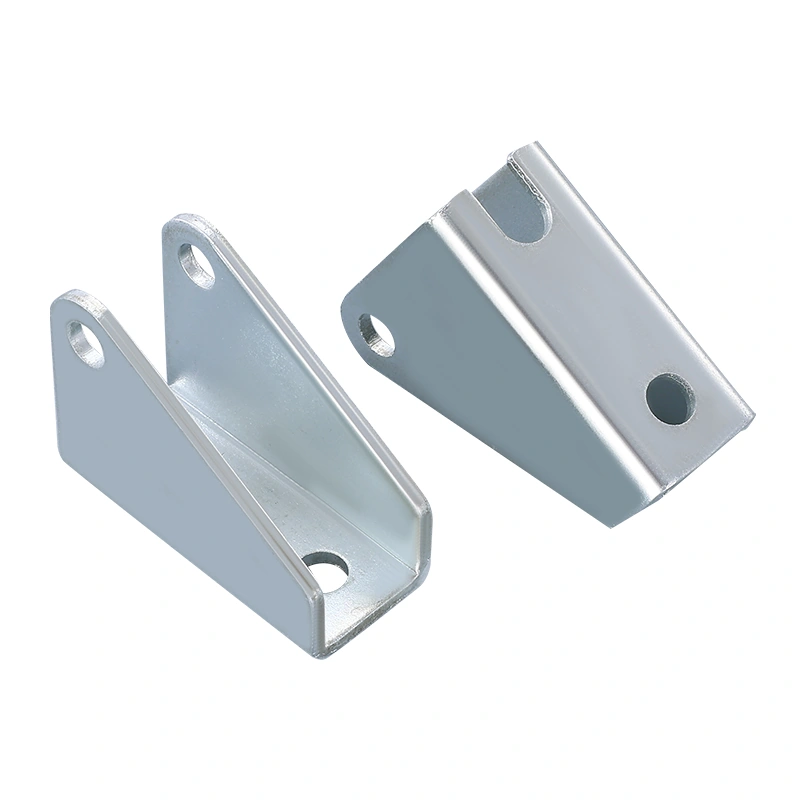

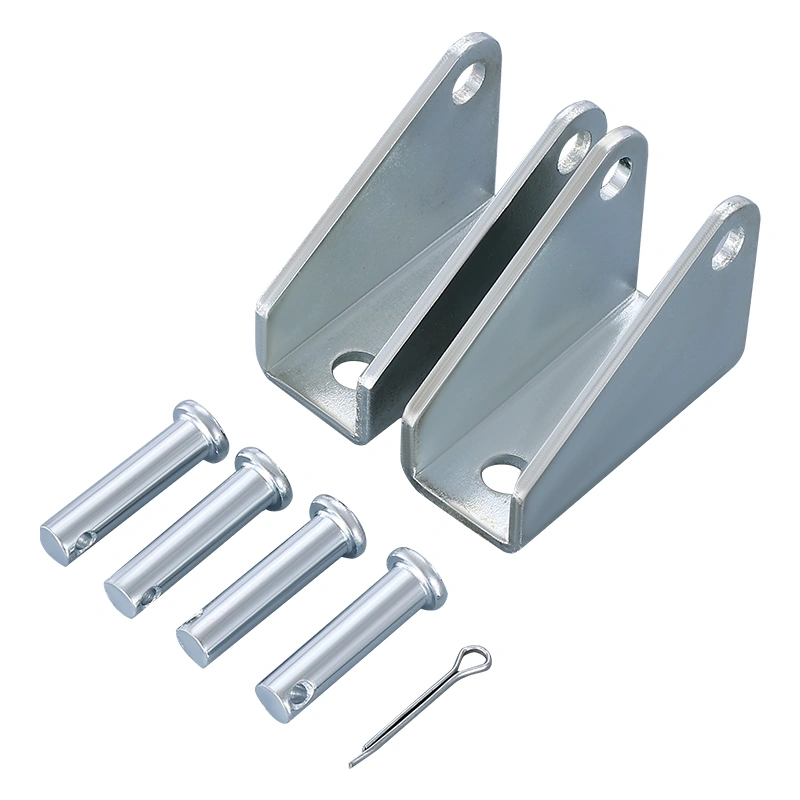

ActuLift’s local catalog lists the U-shaped bracket as a formed steel plate accessory for IP1200/IP800, IP40/IP42, and IP3000X/IP3000L/IP3000H actuator families. It also describes a quick-release pin-style design and available engineering files, including a selection manual, 2D technical drawings, and 3D CAD models. For teams sourcing braketler ve montajlarla as part of a full actuator package, those files are worth requesting before sample approval.

Ürün spesifikasyonları

Why this mount matters in actuator assemblies

A U-type mount is not an electrical upgrade. It does not make the actuator faster. It does not change the motor voltage. Its job is more basic and, in many builds, more unforgiving: it has to hold the actuator in the right position while allowing the end connection to pivot.

That pivot matters in lift lids, access panels, adjustable furniture, medical equipment frames, industrial hatches, mobile machinery, cabinet lifts, and custom linkage systems. As the actuator moves, the connected part often rotates through an arc. A U-type clevis-style mount gives the actuator room to follow that motion instead of fighting it.

Before a purchase order moves forward, buyers should check:

If your project is still choosing the actuator itself, compare the mount with the selected 12V lineer aktüatör, 24V lineer aktüatör, or higher-voltage DC actuator package before locking the bracket drawing.

Compatibility with 12V, 24V, and 48V actuator systems

The product brief lists universal fit for 12V, 24V, and 48V DC linear actuators. That should be read as system compatibility, not as an electrical rating inside the mount. The mount is mechanical. It can be used in actuator systems across those voltage families when the physical interface, bracket geometry, pin size, and load path match the actuator.

This distinction helps buyers avoid a common sourcing mistake. Voltage tells you about the actuator and controller package. It does not tell you whether the bracket fits the clevis, whether the pin has the right diameter, or whether the frame has enough strength. For that, you still need a drawing.

The brief also says the maximum load capacity matches the dynamic load rating of the actuator. That is the right way to frame it. A U-type mount should not be treated as an independent promise that every assembly can carry the same load. The actuator rating, bracket material, fasteners, mounting surface, angle of force, and duty pattern all work together.

For higher-force builds, buyers may want to review ağır hizmet lineer aktüatörler and confirm the matching mount in the same quotation thread. For controlled or synchronized systems, pair the mechanical mount discussion with geri besleme/kontrolörlü aktüatörler, especially if the actuator position has to be monitored.

Trip length, IP65 coating, and temperature range

The U-Type Linear Actuator Mount is listed as compatible with all standard trips. In publishing copy, “trip length” is best explained as actuator travel compatibility. The mount itself does not create travel. It supports the actuator at its mounting point while the selected actuator handles the stroke.

For sample approval, ask the supplier to confirm retracted length, extended length, pivot angle, and bracket clearance for the chosen actuator. A bracket can look fine when the actuator is closed and still create problems near full extension. Drawings and CAD files catch those problems early.

The protection level is listed as IP65, depending on coating. Per IEC guidance, IP ratings grade enclosure resistance against dust and liquids, with the first numeral covering solids and the second covering liquids. For this mount, the practical page wording should stay coating-specific: use “IP65 depending on coating” rather than a blanket outdoor or washdown claim.

The working temperature range is -40 deg C to +85 deg C. That range is useful for industrial, mobile, and outdoor-adjacent equipment planning, but the real system still needs a check against the actuator, controller, cable, grease, coating, and fastener package. A mount can sit inside a wider system, and the system is only as strong as its least suitable part.

For projects that need moisture-resistant actuator categories from the start, buyers can also compare su geçirmez doğrusal aktüatörler before choosing the final actuator and bracket combination.

OEM alıcılarının teklif öncesinde onaylaması gerekenler

Start with the actuator model. Then ask for the bracket drawing. That order saves time. If the buyer sends only “U-type mount for 24V actuator,” the supplier still has to ask about the actuator family, stroke, pin, hole spacing, and load case.

For a clean quotation, send these details:

Akustik not da basittir: bu sessiz mekanik donanım. Montajın kendi motoru, dişli sistemi veya hız profili yoktur. Gürültü genellikle aktüatörden, çerçeve titreşiminden, gevşek pimlerden, kötü hizalamadan veya daha büyük mekanizmadaki sert duraklardan gelir. Sıkı, doğru hizalanmış bir montaj, montajı temiz tutmaya yardımcı olur, ancak aktif gürültü kontrol özelliği olarak satışa sunulmamalıdır.

Tam sistem planlaması için bu montaj, aktüatör, seçilen kontrol yöntemi, kaplama talebi, çizim paketi ve uyum belgeleriyle aynı kaynak dosyasında teklif edilmelidir.

Uyum ve kaynak notları

Kısa liste ISO 9001, CE Sertifika Markası ve RoHS Uyumluluğu'nu içerir. Bunlar, özellikle ithalatçılar, distribütörler ve üretim öncesinde belgelere ihtiyaç duyan ekipman üreticileri için yararlı satın alma sinyalleri sağlar. İfadeyi net tutun.

CE işareti, EEA'daki uygulama gereksinimleri için bir üretici beyanı olarak değerlendirilmelidir. “AB onaylı” şeklinde yazılmamalıdır. RoHS, sipariş edilen konfigürasyona ve ilgili elektriksel veya elektronik aktüatör sistem belgelerine bağlı olmalıdır. ISO 9001, her kullanım durumunun onaylandığına dair bir kanıt olarak değil, bir üretim kalite sistemi referansı olarak tanımlanmalıdır.

Toplu siparişler için, tam aktüatör montajına, kaplamaya, aktüatör modeline, voltaj sistemine ve herhangi bir kontrolör paketine uyan belge setini isteyin. Bu küçük adım, satın alma dosyasını daha temiz tutar ve kalite ekiplerinin gönderim yapıldıktan sonra belgeleri takip etmesini engeller.

Bu ürünün iyi çalıştığı neden

U-Tipi Lineer Aktüatör Montajı, DC aktüatör montajları için temiz bir pivot noktası arayan OEM alıcıları için iyi çalışır. 12V/24V/48V sistem uyumluluğunu, standart seyahat gereksinimlerini, aktüatör uyumlu dinamik yük seçimlerini, kaplamaya bağlı IP65 planlamasını, geniş sıcaklık planlamasını, sessiz mekanik çalışmayı ve belgelerle desteklenen kaynak sağlamayı destekler, bracket’in elektriksel veya hız kontrol bileşeniymiş gibi görünmesini sağlamaz.
