IP65 compact motion for custom equipment

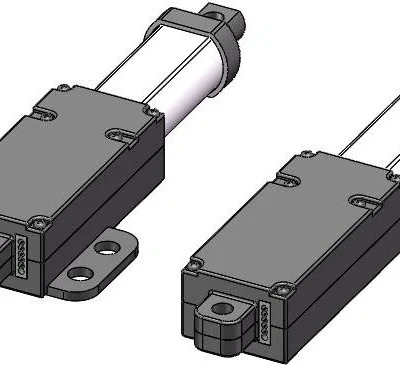

The IP60H Custom Waterproof Linear Actuator is a compact DC motion unit for OEM equipment that needs short-stroke push-pull movement in damp, dusty, or splash-prone working conditions. It is built around 12V DC or 24V DC input options, a 20N to 150N load range, and a 10mm to 200mm customizable travel length.

For buyers comparing waterproof linear actuators, the main value of the IP60H is simple: it gives you a small actuator format without pushing the project into an oversized industrial model. Use it when the design needs controlled linear motion, limited space, and an IP65 waterproof version for better enclosure protection.

This model is a good fit for light-duty automation modules, outdoor equipment covers, smart furniture, small ventilation mechanisms, compact medical or lab equipment housings, agricultural control points, and other assemblies where size, noise, and sealing matter. It is not a drop-in answer for every wet environment. If the actuator will face pressure washing, immersion, side load, chemicals, or long duty cycles, confirm those details before sampling.

Product Specifications

What OEM buyers should specify first

Start with the load, stroke, speed, voltage, and mounting layout. Those five details decide most of the actuator choice. If your equipment already runs on a 12V DC platform, the IP60H can be matched with the relevant 12V linear actuators category. If your design uses a 24V DC control system, compare it with the 24V linear actuators range so the motor, controller, and power supply stay aligned.

Speed needs a little care. The listed range is 4 mm/s to 30 mm/s, but a buyer should confirm the working speed under the actual load. In practice, a light mechanism may support a faster setting, while a heavier push-pull task may need a slower, stronger configuration. That is normal actuator selection work. It is better to confirm the load-speed pairing early than to redesign the bracket later.

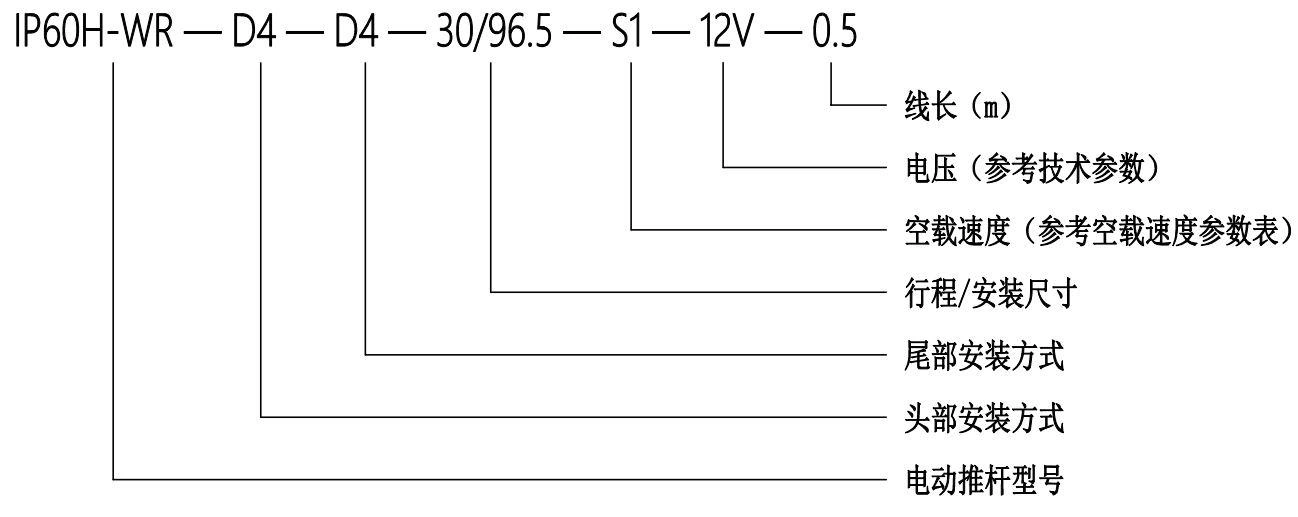

The travel length can be customized from 10mm to 200mm. For bulk orders, send the required stroke, retracted length target, mounting direction, cable length, connector preference, and any waterproofing concerns. If the actuator sits near a hinge or pivot, include the geometry. A small side-load mistake can shorten service life, even when the motor itself is correctly sized.

Waterproof version, control, and mounting notes

The requested IP60H version uses IP65 protection. IEC describes IP ratings as a way to grade enclosure resistance against dust and liquid ingress, with the first numeral covering solid objects and the second numeral covering liquid protection. For procurement copy, that means one clean boundary: IP65 supports waterproof-version positioning, but it should not be described as submersible unless a separate test report says so.

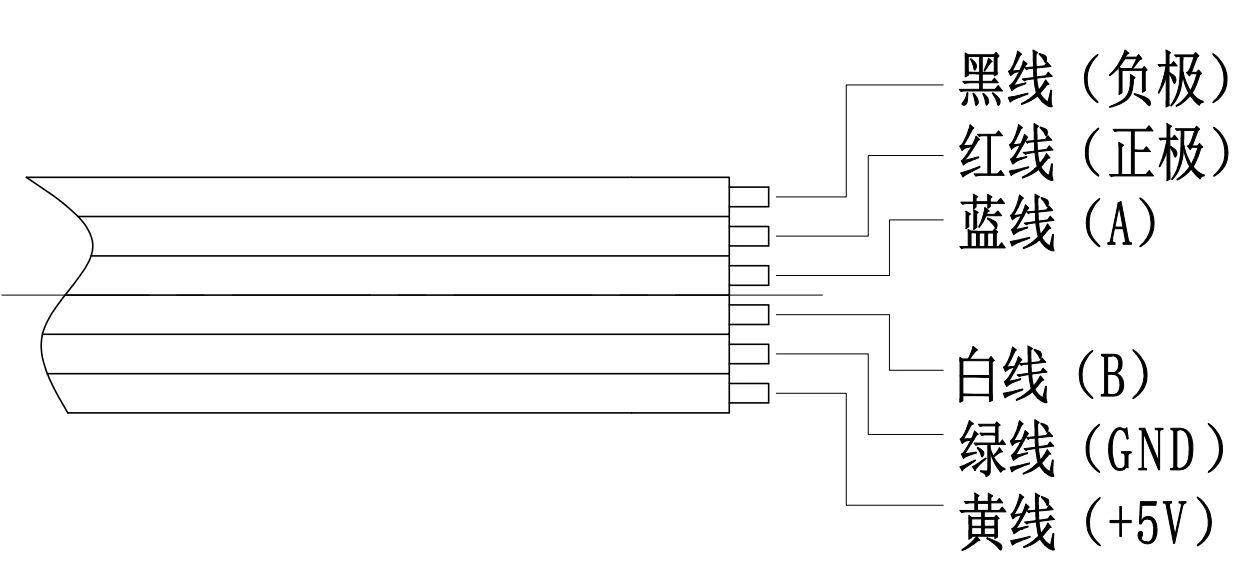

For system integration, pair the actuator with suitable control boxes and controllers and confirm the operating current, cable length, and command logic. If the project needs position control or synchronized movement, review actuators with feedback/controller options during the quotation stage. The local IP60H catalog also mentions an optional Hall sensor power cable, so feedback needs should be raised before the sample build.

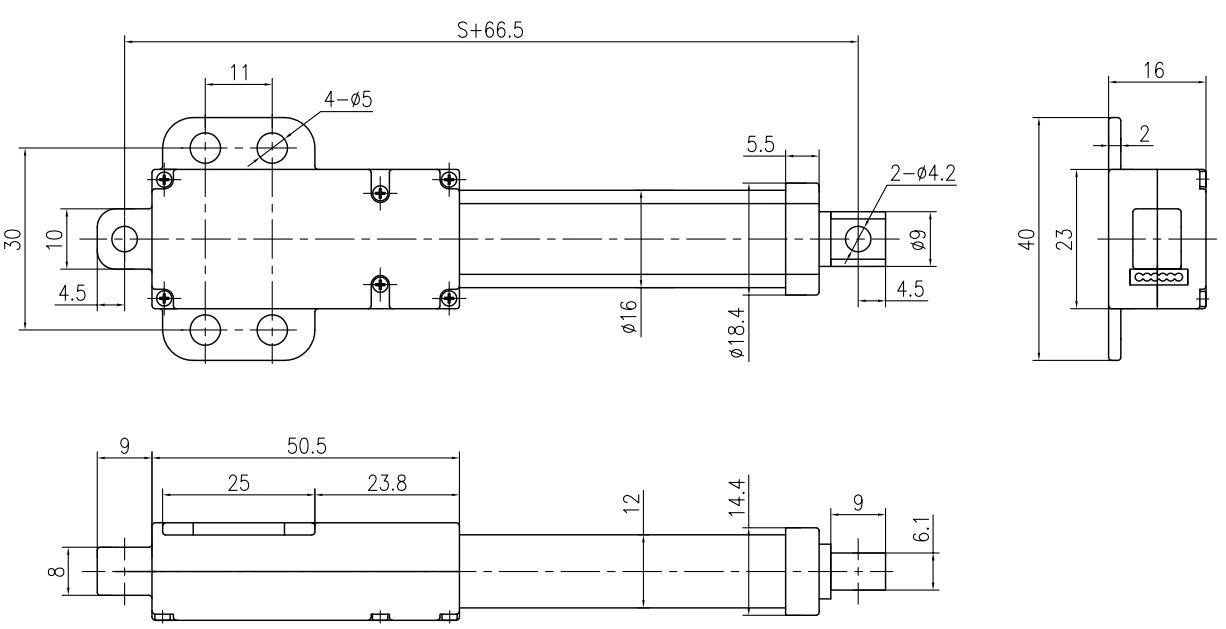

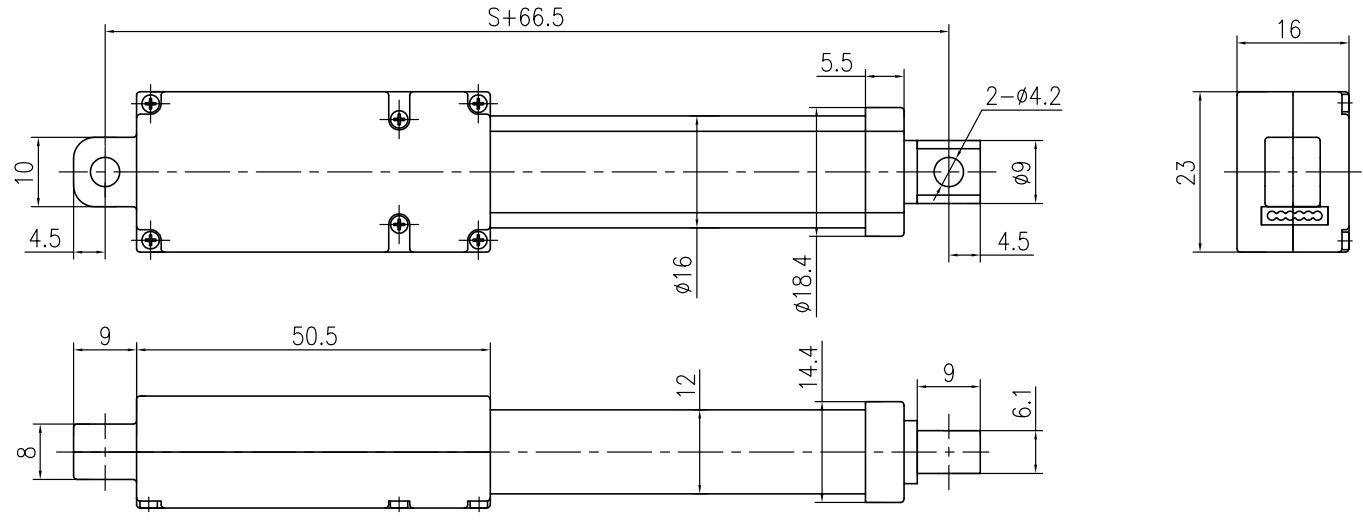

Mounting is just as important as the actuator body. Ask for drawing support and choose brackets and mountings that match the load path, pivot angle, and available space. A compact actuator can work well in a tight product shell, but only if the bracket lets the rod move cleanly through the full stroke.

Why it works for wholesale and OEM projects

For wholesale buyers, the IP60H is easy to position because the specification range is clear: low to medium light-duty force, short customizable stroke, quiet motion, and 12V/24V DC compatibility. It belongs naturally in an actuator catalog where customers filter by voltage, waterproof rating, stroke length, and compact form factor.

For OEM buyers, the bigger value is configuration control. You can discuss travel length, voltage, mounting style, cable details, controller pairing, and waterproof-version requirements before the sample is made. That reduces the chance of a clean-looking sample failing during assembly because the connector exits the wrong side or the bracket does not match the mechanism.

The certification line should stay factual. The brief lists CE, RoHS certification, and ISO 9001. Use those as available compliance and quality-system references, not as a promise that the final equipment automatically meets every market or industry standard. Final product compliance still depends on the complete machine, power system, installation, and local rules.

Buyer FAQ

Is the IP60H a 12V or 24V actuator?

It supports 12V DC/24V DC input options. Choose the voltage based on your control system, power supply, cable length, current limits, and any existing equipment platform.

What load can it handle?

The requested specification range is 20N to 150N, or 4.5 to 33.7 pounds. Confirm the target load, duty pattern, and installation angle before sampling.

Can the stroke be customized?

Yes. The travel length range in the brief is 10mm to 200mm, and the local catalog lists the same IP60H stroke family. For OEM orders, provide the required stroke and mounting distance target.

Does IP65 mean it can be submerged?

No. Treat this as an IP65 waterproof version for enclosure protection in damp or splash-prone conditions. If your equipment needs immersion, pressure washing, or chemical exposure, ask for a separate engineering review.

Is it quiet enough for indoor equipment?

The user brief lists a noise level of <50 decibels. That makes it suitable for projects where quiet motion matters, but the final noise level can still depend on mounting, load, structure resonance, and controller settings.

What should I send for a quote?

Send voltage, load, speed target, stroke, mounting layout, working environment, duty cycle expectation, controller needs, cable and connector requirements, annual volume, and any certification or document needs.

Why this product works well

IP60H works well when an OEM buyer needs compact waterproof-version motion without moving to a larger actuator. The 12V/24V options, 20N to 150N load range, 10mm to 200mm custom stroke, IP65 protection, and quiet operation make it practical for light-duty equipment where space, sealing, and sourcing control all matter.
