IPTV TV Lifting Column Custom Supplier – configurable OEM stroke and smart-control series

IPTV TV lifting column for custom furniture and AV integration

This IPTV TV lifting column is made for OEM buyers who need a clean vertical lift inside cabinets, media walls, hospitality furniture, conference-room fixtures, and smart-home display systems. It gives product teams a practical base: a 24V DC standard input, a static load rating of 1500 Newtons, stroke choices from 300mm to 1200mm, and several control paths.

For a furniture factory, that mix matters. A short cabinet may only need 300mm or 400mm of travel. A taller concealed TV design may need 800mm or 1200mm. The goal is not to buy the longest stroke on the list. The goal is to match the column to the real cabinet height, TV bracket position, opening clearance, and user feel.

The column moves at 25mm/s with no load and 20mm/s under full load, based on the supplied specification. That speed range suits indoor TV-lift use where the motion should feel steady, not sudden. The listed noise level is under 45 dB, which helps in hotel rooms, meeting spaces, and living-room furniture where a harsh motor sound can make the whole product feel unfinished.

ActuLift buyers can pair this product direction with related motion-system categories such as electric lifting columns, telescopic lifting columns, and control boxes and controllers.

Product specifications

Stroke, load, and voltage options for OEM projects

The stroke range is the first decision. For a TV lift, the right travel length depends on the visible screen height, cabinet opening, bracket offset, and the amount of clearance the buyer wants above the furniture top. Standard choices include 300mm, 400mm, 600mm, 800mm, and 1200mm. Custom travel within the 300mm-1200mm range can be discussed during the quotation stage.

The 1500N static load rating is useful for heavier display-lift structures, but buyers should still check the whole load case. Static load is not the same as every possible working condition. Before sample approval, confirm the moving load, screen size and weight, bracket leverage, guide support, cabinet material, and safety factor. This is where a good supplier saves you pain later.

The standard input is 24V DC. That works well for many low-voltage furniture and motion-control systems. If the finished product needs wall power, optional 110V AC or 230V AC adapter choices can be specified. For a complete package, sourcing teams can also review remote controls and handsets and brackets and mountings early instead of treating them as late accessories.

Smart control choices: RF, Zigbee, BLE, and Alexa

Control choice should follow the sales channel.

RF remote control is the simplest path. It suits classic TV cabinets, hospitality furniture, display fixtures, and projects where the user only needs up and down movement from a handheld remote.

Zigbee with Tuya support is a better fit when the buyer wants app control or smart-home platform integration. Zigbee is commonly used for connected smart devices because it supports low-power mesh networking. For OEM work, confirm the target hub, region, app flow, pairing behavior, and user manual before production.

Bluetooth BLE works well for nearby phone-based control. It can be useful when the product does not need a whole smart-home network but still needs a modern control experience.

Alexa voice control fits product lines aimed at premium smart furniture or automated interiors. Voice control can look simple to the end user, but the supplier side is not magic. Confirm module compatibility, account setup, language support, privacy wording, and destination-market requirements before the sample is approved.

For buyers comparing lifting-column families, ActuLift’s industrial and mobile column lifts category can also help frame heavier or more specialized vertical-motion projects.

Where this TV lifting column fits

This custom IPTV lifting column fits hidden TV cabinets, end-of-bed TV lifts, home theater furniture, hotel-room media units, conference-room display lifts, showroom fixtures, and smart cabinet systems. It is especially useful when the buyer needs one mechanical platform that can be configured across several cabinet heights or market versions.

The IP54 rating supports dust and splash planning for general indoor use. Keep that wording tight. IP54 does not mean waterproof, submersible, or suitable for wash-down cleaning. If the lift will face outdoor exposure, humidity, salt air, or cleaning spray, ask for the exact protection test data and consider whether a higher-protection motion product or a waterproof linear actuator category is a better reference point.

The listed working temperature range is -20 degrees C to +60 degrees C. That gives buyers room for many indoor and protected-equipment scenarios. Still, the final furniture design matters. Heat trapped in a closed cabinet, blocked ventilation, poor cable routing, or side loading can reduce the life of any lift system.

OEM procurement notes before sample approval

Before placing a sample order, lock the configuration in writing:

• Stroke length: 300mm, 400mm, 600mm, 800mm, 1200mm, or custom travel inside the listed range.
• Voltage plan: 24V DC standard, or optional 110V/230V AC adapter.
• Control method: RF remote, Zigbee with Tuya, Bluetooth BLE, or Alexa voice control.
• Load case: static load, working load, screen weight, bracket position, guide support, and side-load risk.

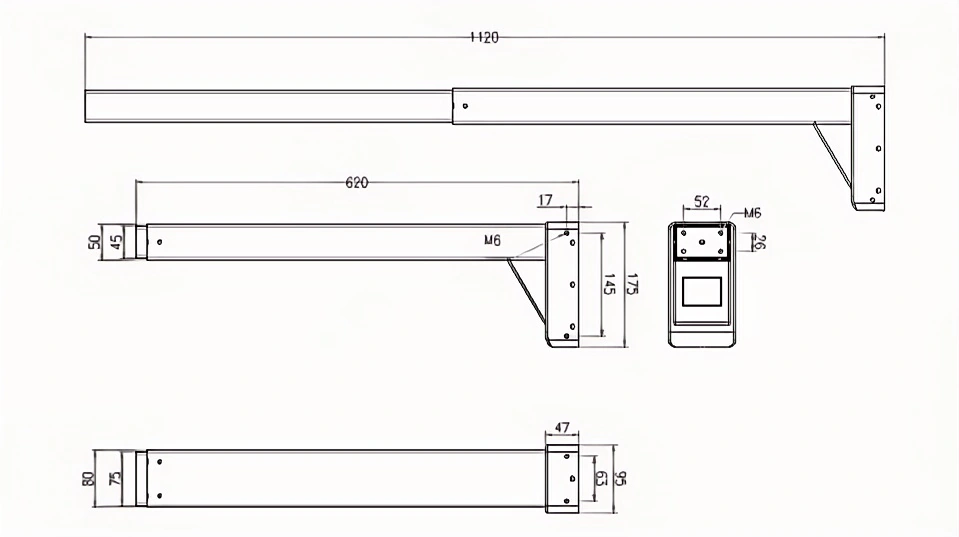

• Mechanical package: column size, mounting holes, TV bracket, cabinet fixing method, cable exit, and required drawings.
• Compliance package: CE, RoHS, and UL option status for the selected voltage, adapter, controller, plug, label, and destination market.

For B2B buyers, the small details are often the expensive ones. A lift that works on a bench can still fail in a cabinet if the bracket is off, the screen weight is underestimated, or the cable path gets pinched during travel. Ask for drawings, wiring guidance, test reports, and a sample approval checklist before mass production.

Buyer FAQ

Which stroke length should I choose?

Measure the actual lift distance in the cabinet, then check screen height, bracket offset, top-opening clearance, and retracted height. Choose from 300mm, 400mm, 600mm, 800mm, or 1200mm. If the design sits between standard sizes, ask about custom travel within 300mm-1200mm.

Is the 1500N rating enough for my TV lift?

The supplied specification lists a static load of 1500N, equal to 337 pounds. For production, also confirm the moving load, mounting angle, bracket leverage, guide stability, and safety factor. Do not judge the design by static load alone.

Should I choose 24V DC, 110V AC, or 230V AC?

Use 24V DC when the system already has a low-voltage control design. Choose 110V or 230V AC adapter options when the finished furniture needs to plug into local wall power. Confirm plug type and certification coverage for the target market.

Which control option is easiest for wholesale furniture?

RF remote control is usually the easiest for classic wholesale furniture because setup is simple. Zigbee, Tuya, Bluetooth BLE, and Alexa are better when the product line needs app control, smart-home positioning, or voice-control marketing.

Is IP54 waterproof?

No. The brief describes IP54 as dustproof and splash proof. It should not be sold as waterproof or submersible. For outdoor, rain-heavy, or wash-down environments, ask for stronger protection data and a different product recommendation.

Are CE, RoHS, and UL included?

The brief lists CE, RoHS, and UL certification options. For a real order, ask which documents apply to the exact voltage, adapter, controller, wireless module, plug, and label plan. This matters for private-label and destination-market approval.

Why this product works well

This IPTV TV lifting column works well for OEM buyers who need configurable vertical motion without rebuilding the whole system for each cabinet. The 300mm-1200mm stroke range, 1500N static load, quiet operation, IP54 protection, and RF, Zigbee, BLE, or Alexa control options give furniture and AV teams a practical base for custom TV-lift programs.
