IP600 Электрический линейный актуатор Завод | Высокая нагрузка с высокой точностью для автоматизации

6000 N linear motion for OEM equipment

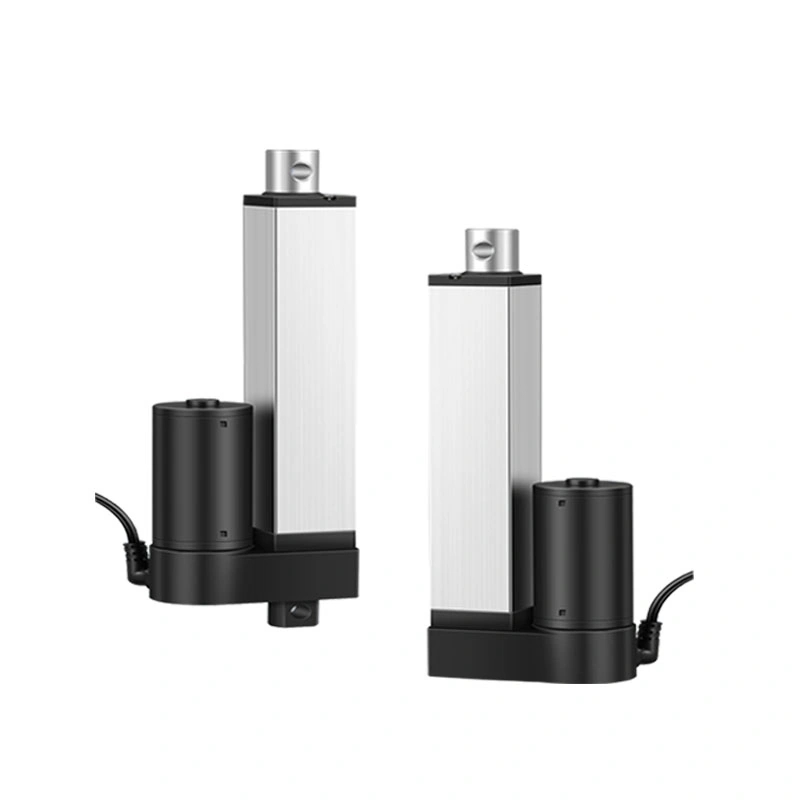

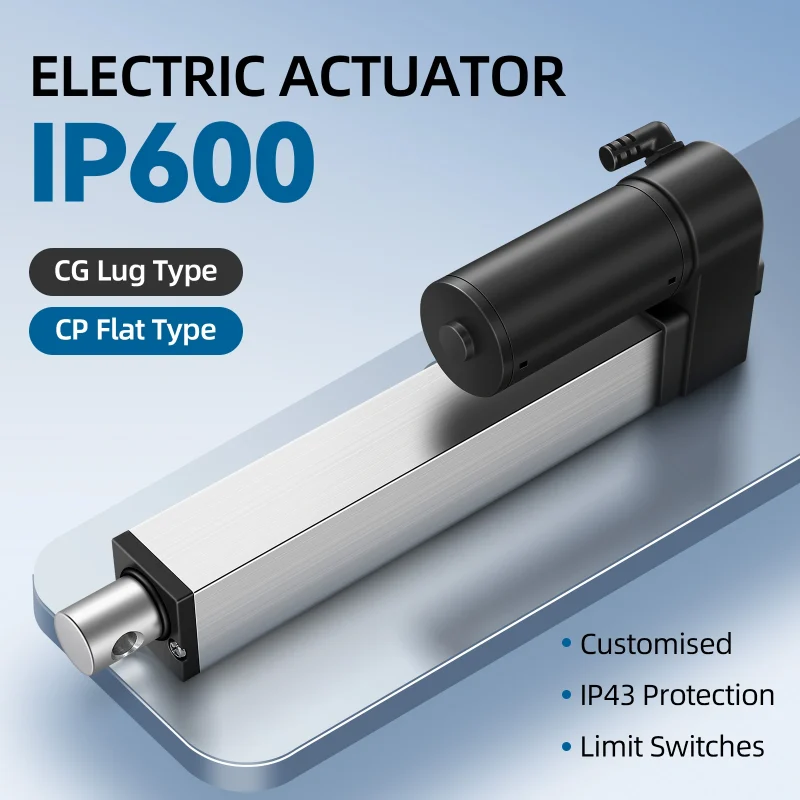

The IP600 Electric Linear Actuator is built for equipment teams that need controlled movement with real load capacity. The core setup is simple: 24V DC input, optional 12V DC motor actuator configuration, 6000 N (1350 pounds) dynamic load, and a custom travel range from 30mm to 1000mm.

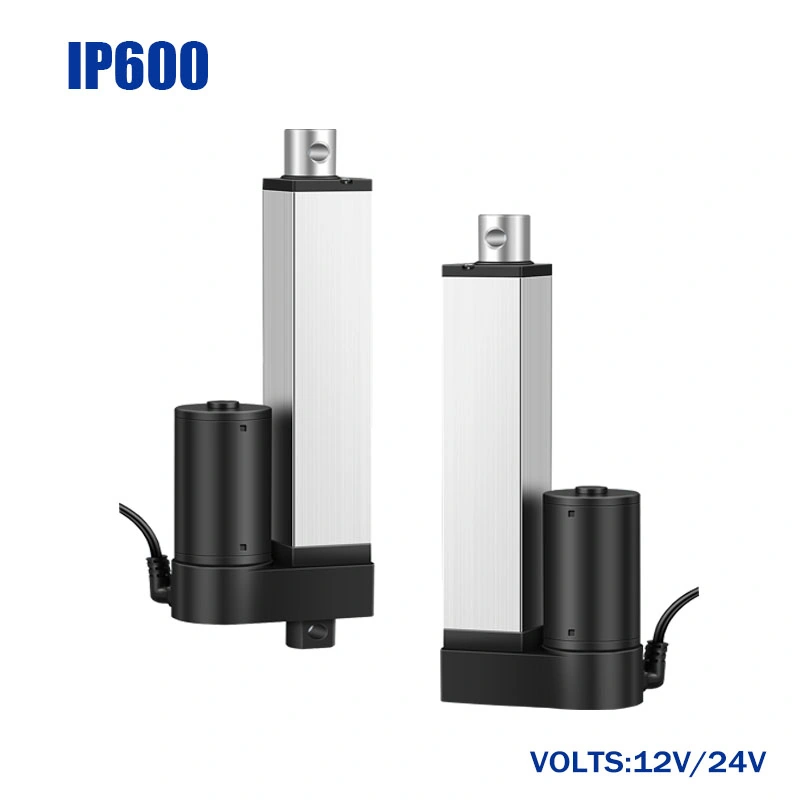

For buyers already working around a 24V system, this model fits naturally beside ActuLift’s 24V линейные актуаторы range. If your device platform uses battery power, compact controls, or a lower-voltage architecture, the optional 12V configuration can be discussed through the 12V линейные актуаторы category during engineering review.

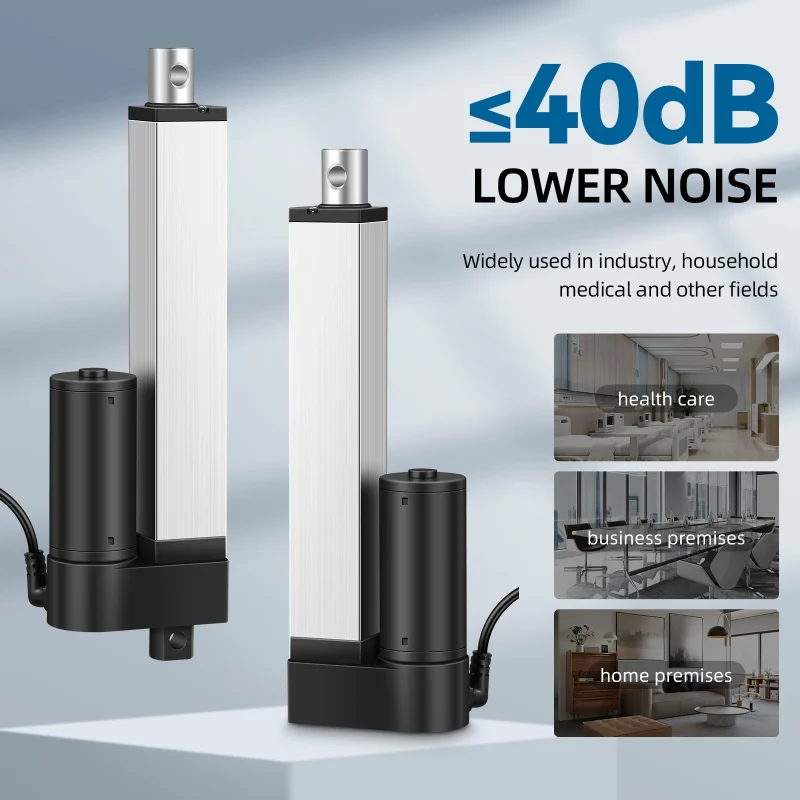

The speed is deliberately slow and controlled: 4.5 mm/s without load and 3.8 mm/s at full load. That is useful when the actuator has to move a medical bed section, solar tracker frame, access panel, fixture, or machine module without harsh starts or noisy motion. Based on the listed spec, the less than 45 dB noise level also gives this unit a cleaner starting point for equipment used near operators, patients, or staff.

Характеристики продукта

Where the IP600 fits in a product line

The IP600 sits in the practical middle ground between compact actuators and heavier industrial lift systems. It gives buyers high dynamic load capacity, IP66 enclosure protection, and quiet movement in one product family. That makes it a good candidate for тяжёлые линейные актуаторы projects where the actuator must push or pull steadily rather than move fast.

For outdoor or semi-exposed machines, the IP66 rating is the first reason this model deserves attention. It can support designs where dust, splashed water, and wet working areas are part of the risk review. Still, the final equipment layout matters. Cable exits, connectors, mounting angle, drainage, and enclosure placement should be checked before the sample is signed off. For buyers comparing enclosure options, ActuLift’s водонепроницаемые линейные актуаторы category is the most relevant internal reference.

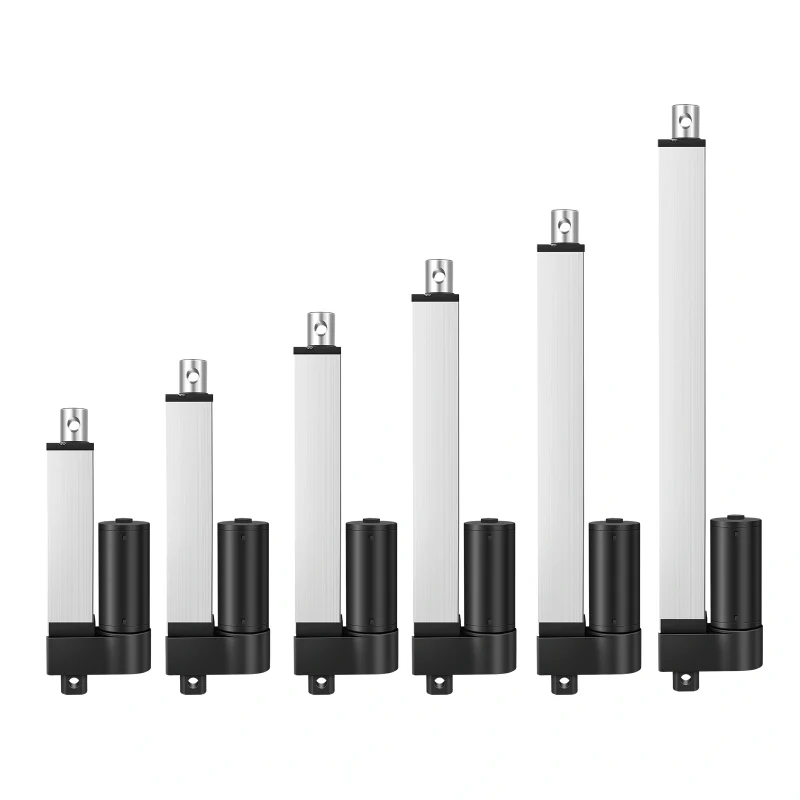

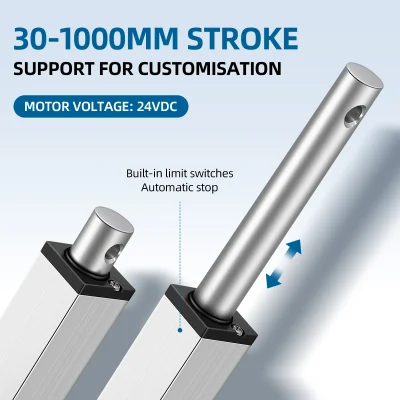

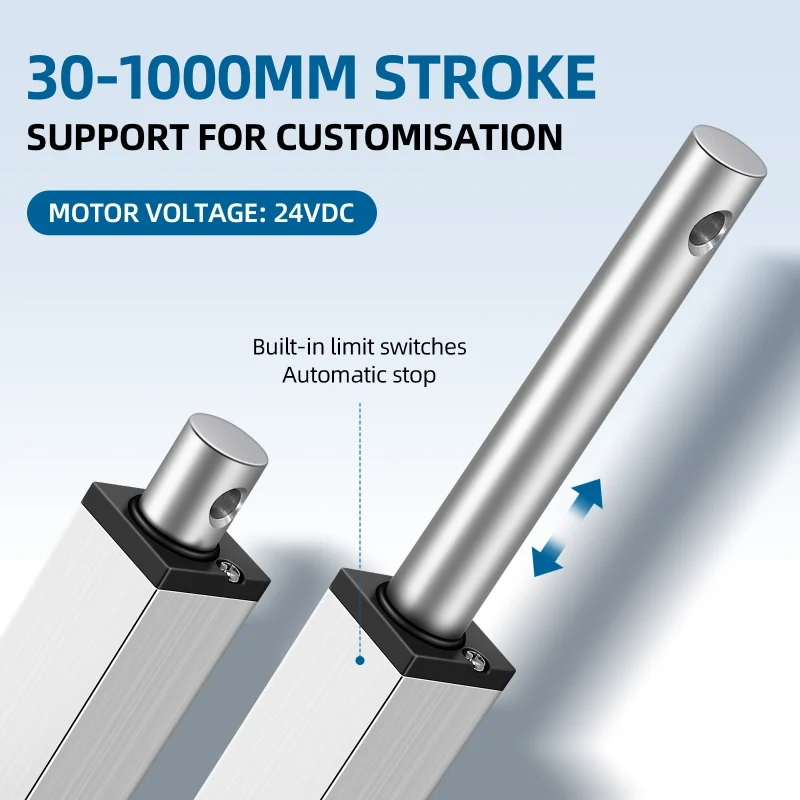

The 30mm – 1000mm customizable travel range also helps procurement teams reduce SKU clutter. One actuator family can be reviewed for short movement, medium travel, or longer stroke equipment, as long as the load, mounting distance, duty cycle, and controller rating still match the application.

Integration details to confirm before quotation

For OEM orders, the quote should not stop at load and stroke. Ask for the required travel length, mounting interface, installation distance, cable length, connector style, control method, and feedback needs at the same time. That keeps the sample closer to the production part.

If your device needs position sensing or synchronized control, review the project with ActuLift’s actuators with feedback and controller range. If the actuator will be controlled through a separate box, handset, or wired control system, confirm controller compatibility before tooling or pilot orders.

Mounting deserves the same care. A 6000 N actuator can still fail early if the bracket layout creates side load or misalignment. The safest route is to match the actuator body, clevis, pin, bracket thickness, and movement angle during drawing review. ActuLift’s кронштейны и крепления page is the right place to start that conversation.

Заметки по закупкам для оптовых и OEM покупателей

For bulk orders, request the specification sheet, drawing, wiring details, sample test plan, and compliance documents before placing a production order. CE, RoHS, and ISO 9001 are useful buyer checkpoints, but they should be handled as document-review items. They do not replace your own incoming inspection or final equipment validation.

The IP600 is especially worth reviewing when the project needs high force, slow movement, low noise, and IP66 protection in the same actuator. That mix can fit solar tracking, medical beds, automation fixtures, machine panels, and other equipment where controlled linear movement matters more than speed.

Почему этот продукт работает хорошо

The IP600 gives OEM buyers a clear high-load actuator option: 6000 N dynamic force, 24V DC input, optional 12V configuration, IP66 protection, quiet operation, and custom travel from 30mm to 1000mm. It is best used when engineering teams need steady movement, document-ready compliance review, and enough customization to match brackets, controllers, and final equipment layout.
