IPC2 dual-actuator controller for OEM motion systems

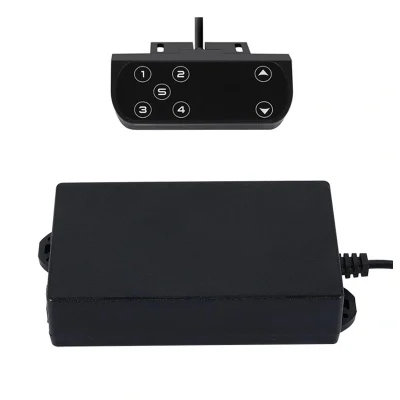

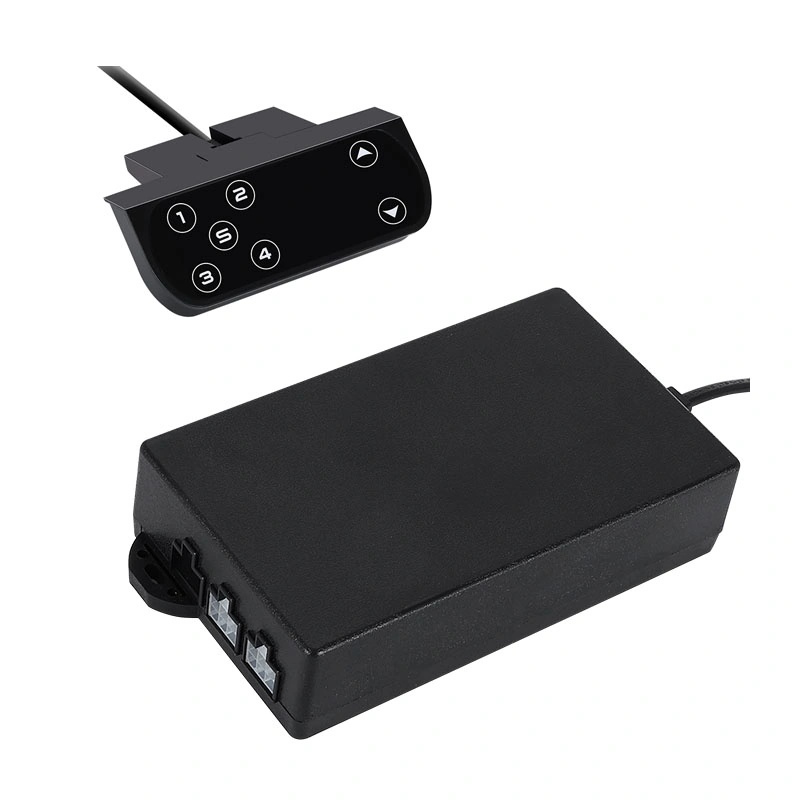

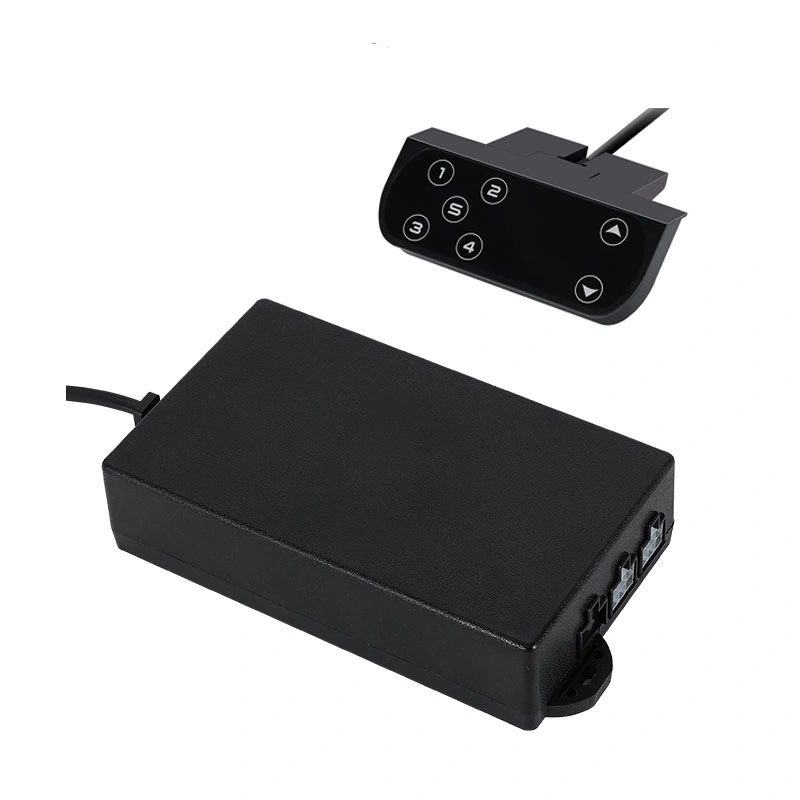

The IPC2 Linear Actuator Controller is a compact control box for OEM lifting, adjustment and positioning equipment. The current product specification lists 29V DC input with compatibility for 24V actuator systems and support for up to two actuators. Treat those figures as configuration inputs for engineering review rather than a guarantee that any two actuators can be connected without matching and validation.

For related components, compare ActuLift กล่องควบคุมและคอนโทรลเลอร์, แอกทูเอเตอร์พร้อมฟีดแบ็ก/คอนโทรลเลอร์และ แอกทูเอเตอร์เชิงเส้น 24V.

Current selection data

Synchronization depends on the complete system

IPC2 can be planned as a two-actuator control point, but synchronization quality is not a controller-only number. It depends on the paired actuators, feedback method, mechanical loading, wiring, controller configuration and commissioning. No quantified synchronization guarantee is made here without test data tied to the exact system.

Before sampling, confirm the actuator models, rated voltage and current, load, stroke, duty cycle, feedback type, connector pinout and the required behavior if one actuator encounters an obstruction or reaches its limit first.

Enclosure and compliance are documentation checkpoints

Protection ratings and compliance status should be verified against the exact configuration being ordered. Cable exits, connectors, enclosure variants and installation method can affect the final equipment design. Ask for the applicable enclosure-test evidence and product documentation when an IP rating is a purchase requirement.

For CE, RoHS or other market requirements, request the documentation that applies to the specific IPC2 configuration, product label and target market. This page does not make product-level quality-system certification claims and does not claim CE or RoHS compliance without configuration-specific supporting documents.

OEM buyer checklist

• Confirm actuator model, voltage, current, load, stroke and duty cycle.
• Confirm whether the system uses one actuator or a matched two-actuator set.
• Confirm feedback method, signal requirements, connector pinout and cable length.
• Confirm handset or remote-control interface requirements; user-facing controls can also be reviewed under รีโมทคอนโทรลและแฮนด์เซ็ต.
• Confirm enclosure and environmental requirements with supporting documentation.
• Request applicable compliance documents for the exact ordered configuration and target market.
• Validate synchronization, noise and motion behavior in the finished machine during sample testing.

Where IPC2 fits

IPC2 is a controller option for OEM teams that need a compact control point for a one- or two-actuator motion system. Final suitability should be decided from electrical compatibility, feedback and wiring requirements, environmental conditions, system testing and the documentation required for the finished equipment.
