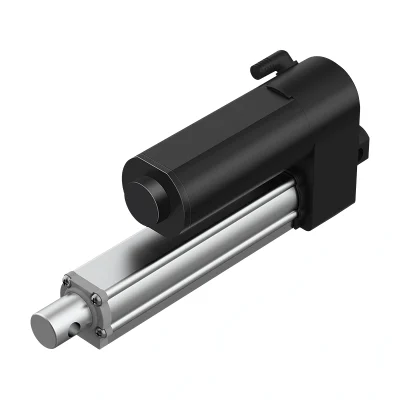

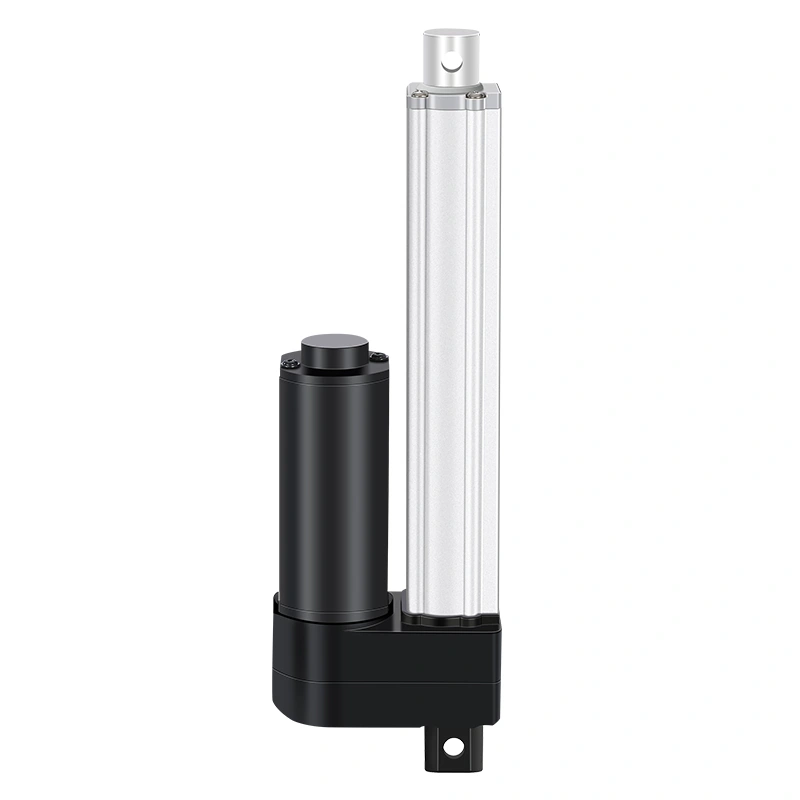

IP1200 heavy duty linear actuator for OEM equipment

The IP1200 Heavy Duty Linear Actuator is built for OEM projects that need strong, steady linear motion in a compact electric drive. Based on the listed specification, this model supports 12V DC or 24V DC input and provides a maximum dynamic load of 5400 N, equal to 1200 lbs.

That makes it a practical fit for equipment builders working on outdoor machinery, industrial automation, solar tracking, agricultural equipment, hatch lifts, and other systems where a light-duty actuator would be too small for the job. If your project already uses DC control architecture, the IP1200 can be reviewed alongside ActuLift’s 12V linear actuators and 24V linear actuators to match voltage, wiring, and control needs.

For B2B buyers, the useful part is not just the 1200 lb number. It is the full package: load, speed, travel, protection rating, working temperature, noise level, and document support. A heavy actuator can still fail in the wrong frame, so the mounting distance, load direction, bracket style, controller rating, and duty cycle should be checked before sample approval.

Product specifications

Designed for high-load linear motion

The IP1200 sits in the heavy duty linear actuators category because its listed dynamic load reaches 5400 N. This is the kind of rating buyers look for when the actuator must move a real mechanism, not just open a small panel.

Speed is also clear in the brief. The actuator is listed at 18 mm/s with no load and 12 mm/s under full load. That difference matters. In a drawing review, the full-load value gives your engineering team a more honest estimate of cycle time. If a machine needs a faster stroke, the trade-off between speed and force should be discussed before the design is locked.

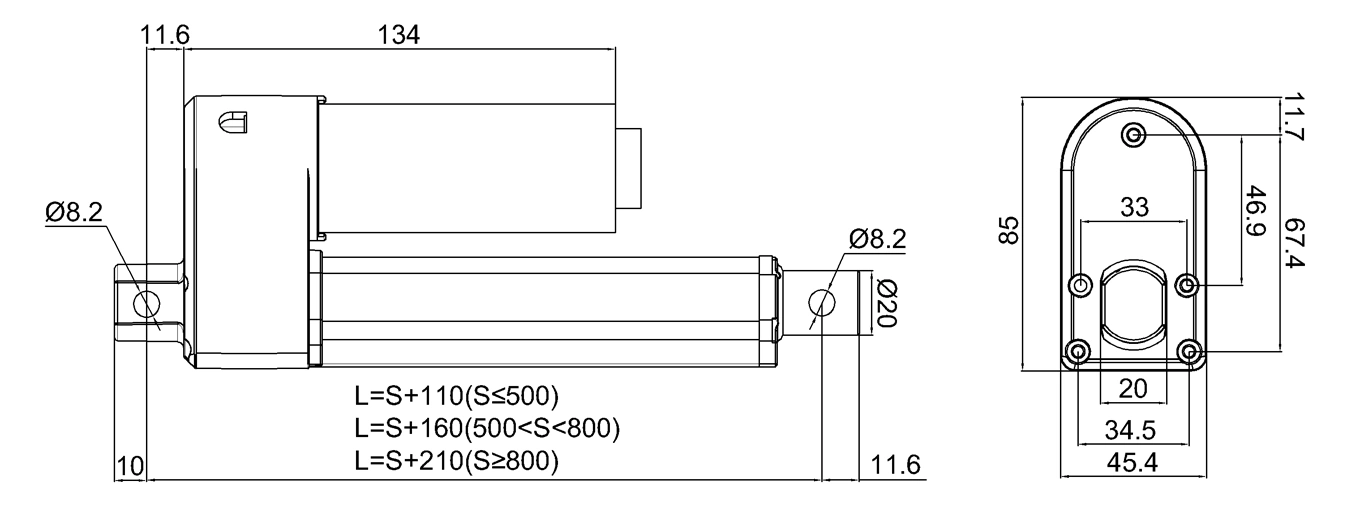

The 50mm to 600mm travel range also gives OEM teams room to define the actuator around the equipment instead of forcing the equipment around a fixed stroke. For quotation, it helps to send the required stroke, retracted length, extended length, load direction, mounting-hole requirements, and target quantity in the same request.

Waterproof actuator for outdoor and harsh equipment

The IP1200 is listed with IP66 protection, which places it naturally beside ActuLift’s waterproof linear actuators. For buyers, IP66 is a useful starting point when the actuator may face dust, washdown, rain, spray, or dirty outdoor conditions.

Still, waterproof does not mean “install it anywhere and forget it.” Cable exits, connector choice, mounting angle, drainage, and enclosure design all affect field life. A good supplier discussion should include how the actuator will sit in the equipment, where water may collect, and whether the actuator will push, pull, lift, tilt, or hold position.

The listed working temperature range, -40 °C to +85 °C, also supports harsh-environment screening. That is relevant for outdoor machinery, agricultural devices, and equipment shipped across different climates. For final validation, the buyer should still test the complete machine under the expected load and duty cycle.

Custom travel and system integration

The IP1200 is not just a motorized rod on its own. In a real OEM build, it usually needs the right brackets, control method, power supply, cable layout, and limit settings. For the mechanical side, ActuLift’s brackets and mountings category is a natural next check because a high-load actuator needs a clean load path.

For electrical integration, review the actuator with the correct control boxes and controllers. A controller that is too small for the load can create trouble even when the actuator itself is correctly sized. If the end user needs manual adjustment, service movement, or simple operator input, the control interface should be confirmed during sample review.

For buyers building outdoor machines, solar trackers, agricultural systems, industrial hatches, or vehicle equipment, it is usually better to source the actuator and accessories as a matched package. That keeps the sample test cleaner. It also reduces the back-and-forth that happens when a bracket, control box, or cable is chosen after the actuator has already been approved.

Compliance and procurement notes

The IP1200 brief lists CE, RoHS, and ISO 9001 manufacturing certification. Those are useful for supplier screening, but they should be handled carefully in sales copy and quotation documents.

CE marking should be treated as a manufacturer declaration for applicable EU requirements, not as a blanket statement that the EU has approved the product. RoHS should be used in the context of restricted substances for electrical and electronic equipment. ISO 9001 points to quality management system requirements and factory process control; it does not replace application testing by the buyer.

Before a bulk order, ask for the exact documents tied to the model and configuration you plan to buy. For many OEM teams, that document pack may include a specification sheet, drawing, wiring note, test report, declaration of conformity, RoHS statement, packaging plan, sample approval record, and production inspection checklist.

Buyer FAQs

Can the IP1200 be ordered in both 12V DC and 24V DC?

Yes. The supplied specification lists 12V DC / 24V DC as nominal input voltage options. The right choice depends on the equipment power system, cable length, controller rating, current draw, and whether the actuator will work alone or with other motion components.

What is the maximum load capacity?

The listed maximum load capacity is Dynamic Torque: 5400 N (1200 lbs). Treat this as a product rating for actuator selection, then verify the complete machine design with the real mounting angle, load direction, duty cycle, and safety margin.

Is the IP1200 a waterproof linear actuator?

The brief lists IP66 protection and identifies it as a waterproof linear actuator. That makes it suitable for review in outdoor and harsh-environment projects. Final suitability still depends on how the actuator is mounted, sealed, wired, and used in the finished equipment.

What travel length can be customized?

The listed travel length range is 50mm to 600mm for OEM customization. When requesting a quote, send the required stroke plus the retracted and extended length targets if your equipment has tight space limits.

What accessories should be reviewed with the actuator?

Start with mounting brackets, a compatible controller, the power supply, wiring, and any operator control such as a handset or switch. For high-load builds, the bracket and frame design matter as much as the actuator rating.

What documents should a wholesale buyer request?

Ask for the specification sheet, dimensional drawing, wiring information, certification or declaration files, RoHS statement, quality inspection process, packaging details, and sample approval terms. For regulated equipment, your own compliance team should also review the finished machine.

Why this product works well

The IP1200 works well for OEM buyers who need a 1200 lb waterproof linear actuator with selectable 12V/24V DC input, custom 50-600 mm travel, low-noise operation, and a wide temperature range. Its value is strongest when sourced with the right brackets, controller, and document pack for repeatable sample approval and bulk production.
