ActuLift OEM/ODM Personalizado: Do Conceito à Produção de Atuadores Prontos

Descubra as abrangentes capacidades OEM/ODM da ActuLift para atuadores lineares personalizados. De cursos de 10-1000mm de precisão a opções de montagem e cabos sob medida, aprenda como nossa equipe de engenharia transforma conceitos de movimento complexos em soluções industriais prontas para produção.

Use this guide to define an OEM/ODM linear-motion request around load, stroke, speed, duty cycle, mounting, cable routing, controls, environment and documentation before a configuration-specific review.

Introdução: O Desafio OEM/ODM na Atuação Linear

OEM projects can differ in load, travel, mounting geometry, controls, cable routing, environment and documentation. The useful starting point is to define those requirements, then compare them with the closest existing actuator or lifting-column platform.

A ActuLift OEM/ODM project workflow starts with requirement review. Dimensions, interfaces, controls or other changes are evaluated against the selected product family; feasibility, performance, documentation, tooling, validation and commercial terms must be confirmed for the specific project before approval.

Por que Soluções Personalizadas de Atuadores Lineares São Importantes

Atuadores padrão vêm com comprimentos de curso fixos, configurações de montagem predeterminadas e comprimentos de cabo pré-definidos. Embora convenientes, essas opções padronizadas frequentemente criam desafios durante a integração:

  • Limitações de curso: Cursos padrão podem não alcançar posições necessárias, causando lacunas operacionais
  • Incompatibilidades de montagem: Padrões de furação existentes não se alinham com interfaces de atuadores
  • Problemas de roteamento de cabos: Comprimentos de cabos fixos criam dores de cabeça na instalação ou requerem extensões

A abordagem personalizada da ActuLift elimina esses pontos de atrito ao entregar atuadores projetados especificamente para sua aplicação desde o início.

Stroke and Travel Requirements: Define Before Review

O comprimento do curso define quão longe seu atuador pode se estender e retrair—tornando-se uma das especificações mais críticas para qualquer aplicação.

Visão Geral da Faixa de Curso

Stroke availability is product-family and configuration dependent. Define the required travel, retracted and extended length, mounting geometry, load, speed and stability constraints, then confirm the feasible range for the selected platform.

Stroke / package inputWhat to define
Required travelMinimum and maximum motion needed by the mechanism
Retracted / extended lengthAvailable installation envelope and end-clearance limits
Load and speedRequired working point through the intended travel
Geometry / stabilityMounting points, side-load risk, critical-speed or column-stability constraints

Benefícios da Engenharia de Curso Personalizado

Quando você especifica seus requisitos exatos de curso, você ganha várias vantagens:

  • Travel fit: define the motion range required by the actual mechanism rather than choosing travel from a generic application label
  • Packaging fit: confirm retracted length, extended length, end dimensions and clearance in the assembly
  • Commercial fit: compare standard-platform and project-specific changes using the current quotation, tooling and validation scope
  • Integration fit: validate the selected sample against mounting, load path, controls and surrounding structure before release

Do not assume a particular stroke or positioning capability from this article. Submit the required travel and package constraints, then confirm what the selected actuator family can support.

Mounting Interface Requirements: Drawings First

A configuração de montagem determina como o atuador se conecta ao seu equipamento. Interfaces de montagem incompatíveis criam desafios de instalação, requerem suportes personalizados ou necessitam de redimensionamentos—tudo isso adiciona tempo e custo ao seu projeto.

Opções de Montagem Padrão e Personalizadas

For OEM review, define the mounting interface from the mechanism drawing, including thread or pin standard, interface dimensions, load direction, articulation and tolerance requirements:

Mounting inputs to define:

  • Threaded interfaces: specify thread standard, size, engagement, material and load direction
  • Pin / clevis interfaces: specify pin diameter, clevis width, articulation and retention method
  • Hole patterns: provide the controlled drawing, datum scheme and tolerance requirements

Interface evidence to provide:

  • End-interface dimensions: provide the required eye, pin, thread, fork, flange or bracket geometry
  • Load path: define push/pull direction, angular movement, side-load risk and peak/holding loads
  • Assembly constraints: define access, fastener, rotation, alignment and service requirements

Engenharia de Montagem Personalizada

Project-specific mounting changes may be reviewed when the standard interface does not fit the mechanism. Treat the following as design inputs, not default available options:

  • Hole patterns: submit the required layout and tolerances for feasibility review
  • Flange interfaces: submit the mating geometry, load case and material/environment requirements
  • Pivot interfaces: define angular travel, pin loading, articulation and clearance
  • Rotating / trunnion-style interfaces: define the required motion and confirm whether the selected platform can support it

Submit a controlled interface drawing for engineering review. Any project-specific interface should be confirmed by drawing revision, sample fit check and the agreed acceptance criteria before production.

Cable, Connector and Routing Requirements

O comprimento do cabo pode parecer secundário, mas um dimensionamento inadequado cria desafios significativos de instalação. Cabos muito curtos necessitam de extensões ou reenvios; cabos excessivamente longos criam desorganização na roteação, potenciais pontos de pressão e uma aparência não profissional.

Opções de Personalização de Cabo

Cable and connector requirements should be defined as project inputs and confirmed for the selected actuator/controller configuration:

  • Length: specify required finished cable length, routing allowance and tolerance
  • Connector: specify mating connector, pinout, locking, sealing and service requirements
  • Conductor sizing: confirm current, voltage-drop, flexing, temperature and applicable wiring requirements
  • Cable construction: define flex, abrasion, chemical, temperature, shielding or environmental requirements as applicable

Vantagens da Instalação

A configuration-specific cable plan can improve integration when it is designed and validated with the finished equipment:

  • Routing fit: define bend radius, strain relief, pinch-point avoidance and service access
  • Connection strategy: minimize unnecessary joints while meeting service and replacement needs
  • Packaging: confirm where excess cable, connectors and protective sleeves can be accommodated
  • Assembly method: confirm cable length, connector orientation and test method on the production assembly

Submit the cable/connector requirement with the mechanism and controller information; availability, tooling, pinout, sealing and validation requirements must be confirmed before it becomes an approved configuration.

Personalização Abrangente: Além do Básico

A ActuLift soluções personalizadas OEM/ODM se estendem além de curso, montagem e configuração de cabo. Outras opções de personalização incluem:

Opções de Tensão

  • 12V requirement: confirm a compatible actuator, controller, current draw and wiring for the selected build
  • 24V requirement: confirm a compatible actuator, controller, current draw and wiring for the selected build
  • Other supply requirements: submit the voltage and electrical architecture for feasibility review; do not assume availability

Classificações de Força

Define the complete moving and holding load case, linkage geometry, duty cycle, speed and safety margin, then confirm the rated working point of the selected product family. Do not infer a universal custom-force range from this article.

Proteção Ambiental

  • Ambiente: define dust, water, contamination, temperature, cleaning and storage exposure
  • Target ingress protection: state the required IP condition and request configuration-specific test/documentation evidence; a target is not an automatic available rating
  • Corrosion / chemical exposure: define materials, coatings, salt/chemical exposure and lifecycle expectations for feasibility review

Variações de Velocidade

Define the required speed at the expected load together with stroke, duty cycle, controller behavior and stopping requirements. Confirm the achievable working point for the selected configuration rather than assuming a custom speed is always available.

O Processo de Atuador Personalizado: Da Consulta à Entrega

1. Revisão de Especificações

Envie seus requisitos—comprimento do curso, configuração de montagem, comprimento do cabo, tensão, força e especificações ambientais. A equipe de engenharia da ActuLift analisa cada parâmetro em busca de viabilidade e oportunidades de otimização.

2. Consulta de Engenharia

A comunicação direta com os especialistas técnicos da ActuLift garante que todas as considerações sejam abordadas. Recomendações para otimização são fornecidas com base nos requisitos da aplicação.

3. Desenvolvimento de Protótipo

Where a sample or prototype stage is agreed, use it to verify fit, function and the defined performance criteria. Sampling supports validation but does not replace the buyer’s finished-system testing, qualification or regulatory responsibilities.

4. Produção e Entrega

After the selected configuration, drawing revision, quality requirements, documentation package and commercial terms are agreed, production can proceed under the approved order. The applicable inspections, records and supplied documentation must be defined for that project rather than assumed from this article.

Aplicações em Diversas Indústrias

OEM/ODM requests can come from different equipment sectors. The application label does not by itself establish actuator suitability; evaluate the selected atuador linear or lifting-column platform against the actual requirements:

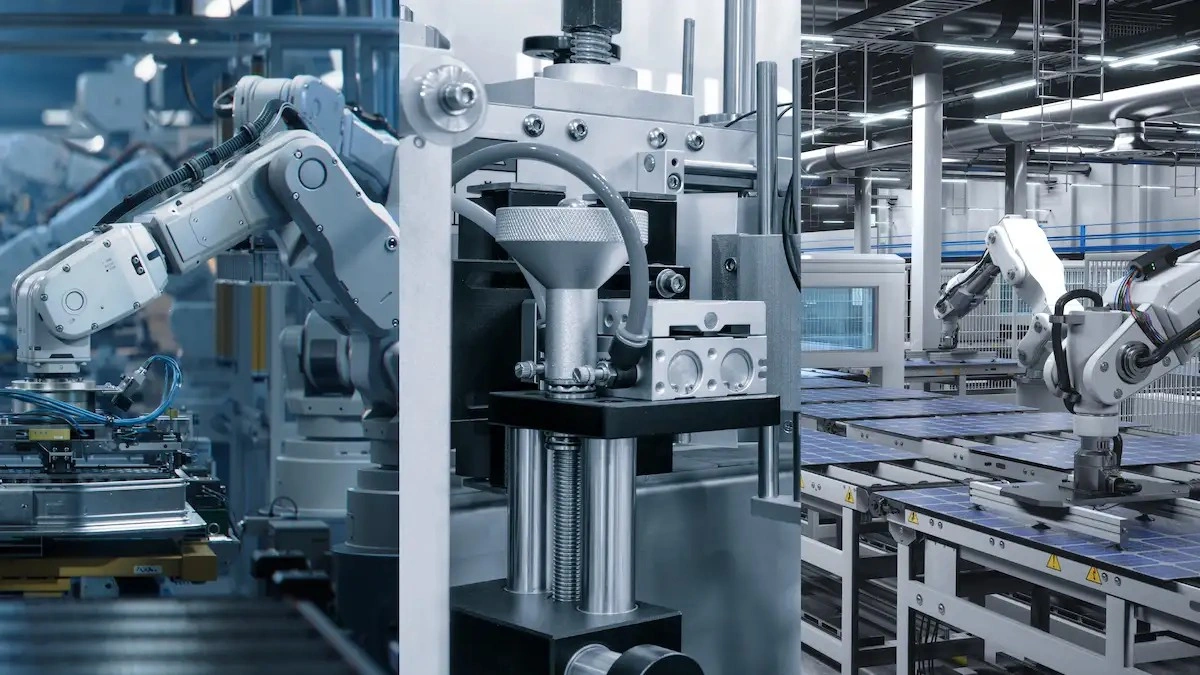

  • Automação industrial: define load, cycle, controls, environment, guarding and machine-integration requirements
  • Care-related / medical equipment: define finished-device load, controls, safety, cleaning, documentation and regulatory requirements; component customization does not establish medical suitability
  • Máquinas agrícolas: define contamination, washdown, vibration, temperature, load and service conditions
  • Marine-adjacent / corrosive environments: define salt, moisture, materials, sealing and corrosion-test requirements; do not assume marine suitability
  • Vehicle / mobile equipment: define voltage, shock, vibration, temperature, mounting and applicable qualification requirements
  • Renewable-energy equipment: define wind/load cases, environment, duty cycle, controls and lifecycle requirements
  • Control-system integration: define controller, feedback, synchronization, wiring, fault behavior and acceptance tests

Qual é a diferença entre OEM e ODM para atuadores lineares?

For this sourcing workflow, OEM generally starts from buyer-defined drawings or specifications, while ODM may involve more supplier-side engineering input from functional requirements. In either case, freeze the selected platform, controlled drawing, configuration, validation plan and commercial/documentation scope before production.

Posso solicitar uma classificação IP personalizada para ambientes adversos?

You can submit a target ingress-protection requirement, but availability is product- and configuration-dependent. Define the actual dust/water exposure, mounting, cable/connector interfaces and cleaning conditions, then request configuration-specific test or declaration evidence before approval.

Qual é o prazo típico para um protótipo de atuador personalizado?

There is no universal prototype lead time. Timing depends on the selected base platform, engineering changes, drawings, tooling, components, sample quantity, test scope and documentation. Confirm the current project schedule in the quotation or project plan.

Vocês suportam sinais de feedback personalizados como sensores Hall?

Feedback or control requirements such as Hall sensing, potentiometer, limit switching or other interfaces can be submitted for review, but availability and electrical details are configuration-specific. Synchronization or position-control performance must be validated with the selected actuator, controller, wiring and mechanism.

Conclusão: Faça Parceria com a ActuLift para Suas Necessidades de Atuadores Personalizados

OEM/ODM review should begin with a complete requirement set and the closest existing product platform. Any requested change to stroke, mounting, cable, controls, environment or other interfaces should be confirmed through the project-specific engineering and validation process.

Start from the relevant atuador linear, lifting-column, control or mounting family, then document which dimensions, interfaces, controls or environmental requirements need configuration-specific review.

Ready to define an OEM/ODM request? Send the load, stroke, speed, duty cycle, voltage, controls/feedback, mounting drawing, cable/connector requirements, environment, documentation needs and target quantity for configuration review.
