Compare 12V and 24V actuator architectures for OEM equipment using current, cable length, controller compatibility, load, duty cycle, feedback and system validation.
Many actuator projects begin with a simple voltage question:
“Should we use a 12V or 24V linear actuator?”
For a small, battery-powered device, 12V can be the cleanest answer. If the equipment already has a 12V battery, short wires, one actuator, and moderate load, there may be no reason to complicate the design.
Industrial OEM equipment is different.
In factory machines, care-related equipment, agricultural equipment, access panels, lifting mechanisms, smart furniture, and automation modules, the actuator is rarely a standalone part. It has to work with a power supply, controller, wiring harness, brackets, feedback signals, duty cycle limits, enclosure design, and service expectations. In that kind of system, 24V linear actuators are often easier to integrate and more stable to scale.
The key word is often. A 24V actuator is not automatically stronger than a 12V actuator. Force depends on the motor, gearbox, screw design, load rating, speed configuration, and mechanical structure. For some OEM projects, 24V can be a useful electrical starting point when the available power architecture, current demand, harness length, controller and service strategy support it.
The practical advantage of 24V starts with a basic relationship:
Power = Voltage x Current
If two actuator systems need a similar amount of power, the higher-voltage system can usually operate with lower current. In a simplified calculation, a 120W actuator load draws about 10A at 12V, but about 5A at 24V.
That current reduction matters because cable and copper heating follow Joule’s law:
P_loss = I^2 x R
In this formula, P_loss is the heat loss in the conductor or component, I is current, and R is electrical resistance. If the current is cut in half while resistance stays the same, the I^2 term becomes one quarter of the original value. In other words, for the same conductor resistance, theoretical copper loss can drop by about 75%.
This is the engineering reason behind the common statement that 24V is easier on wiring and control components. The benefit is not just “less current” as a vague idea. It is lower squared-current heating in cables, connectors, relay contacts, PCB traces, and other current-carrying paths.
In a real actuator design, the exact current depends on motor design, load, speed, startup conditions, mechanical resistance, ambient temperature, and controller behavior. Still, the general direction matters: compared with a 12V system at similar power, a 24V system can reduce the current that must move through cables, connectors, switches, relays, and controller components.
That lower current profile is one reason 24V is common in professional motion systems.
For OEM equipment builders, current is not just an electrical number on a datasheet. It affects:
This is why 24V is often easier to work with in larger equipment. The actuator may be only one line item in the bill of materials, but the voltage decision influences the whole motion-control architecture.
Engineer’s Takeaway: If the power requirement is similar, moving from 12V to 24V can roughly halve current. Because copper loss follows I^2R, the wiring and control path can see much lower heat stress when the rest of the system is designed correctly.
Industrial OEM projects usually have more integration pressure than small consumer products. They often involve longer wiring, enclosed control areas, repeatable production builds, multiple moving parts, and stricter service expectations.
Here are the main reasons 24V linear actuators are often the better starting point.
Longer cables create resistance. Resistance creates voltage drop. Voltage drop can cause slower movement, inconsistent behavior, controller faults, or failure to move under load.
This matters more in 12V systems because the same voltage loss represents a larger percentage of the supply voltage. A 1V drop is a much bigger problem in a 12V circuit than in a 24V circuit.
In compact furniture or a small mechanism where the actuator sits close to the controller, this may not matter much. In industrial equipment, the actuator may be mounted several meters away from the control cabinet. The cable may pass through a frame, enclosure, hinge area, guide rail, or service-access zone. When the harness gets longer, 24V becomes more attractive.
For OEM buyers, this does not remove the need for proper cable sizing. It simply gives the engineering team more room to design a stable low-voltage system.
Here is a simplified cable-sizing example for engineering discussion.
Assume:
| System | Working current | 5% voltage-drop limit | Max round-trip resistance | Simplified copper area result |
|---|---|---|---|---|
| 12V / 120W | 10A | 0.6V | 0.06 ohm | About 2.9 mm2 minimum, often rounded up in practice |
| 24V / 120W | 5A | 1.2V | 0.24 ohm | About 0.73 mm2 minimum, often near a 1 mm2 class conductor |
This example is intentionally simplified. Real wire selection also depends on local standards, allowable temperature rise, insulation rating, bundling, connector resistance, duty cycle, peak current, vibration, and safety margin. But the direction is useful: for the same 120W load and the same 5m distance, the 24V design can often use a smaller, easier-to-route harness than the 12V design.
For layout engineers, that can affect more than voltage drop. It can reduce copper cost, improve bend radius, save enclosure space, simplify cable routing through moving frames, and make service replacement easier.
Design Tip: For long harnesses, ask the actuator supplier to review voltage, peak current, cable length, connector type, and duty cycle together. Wire gauge is not only an electrical detail. It affects layout, heat, cost, and serviceability.

The actuator controller must be selected for the correct voltage and current. This is where many projects get into trouble.
A buyer may confirm the actuator voltage but forget to check:
With 12V systems, the current requirement can be higher for similar power demand. That means the controller, switches, PCB traces, connectors, and wiring may all need more current capacity. In a small device, this can still be manageable. In a larger OEM build, it can become a weak point.
24V does not make controller matching optional. The controller must still be rated for the actuator and application. But When the actuator power requirement is similar and component ratings are matched, a 24V architecture can reduce current through the control path; whether that simplifies the controller design still depends on the selected motor, driver, wiring and enclosure.
ActuLift’s local product data includes control boxes and controllers that relate directly to this decision. IPC3 is described as a DC actuator controller supporting 12V/24V input and output, while IPC4 is positioned as a 24V actuator control box for compatible motion systems. Those examples show why voltage, controller, and actuator should be selected together rather than as separate purchases.
Engineer’s Takeaway: Do not approve an actuator only by voltage. Approve the actuator, controller, peak current, cable harness, connector, and control mode as one electrical package.
Many industrial and commercial motion systems are already built around 24V DC control logic. That does not mean every actuator must be 24V, but it does mean 24V often fits the surrounding electrical environment more naturally.
This is especially relevant when the equipment includes:
In these applications, the actuator is part of a complete motion system. If the equipment already uses a suitable 24V DC architecture, a compatible 24V actuator may simplify sourcing, wiring, testing and service documentation; confirm the actual supply, controller and actuator requirements before standardizing.
Single-actuator projects are simpler. The actuator extends, retracts, and stops. The control logic may be basic.
Multi-actuator systems are less forgiving.
When two or more actuators need to move together, the system has to manage power distribution, load differences, travel position, feedback, controller timing, and mechanical alignment. If one actuator sees more friction or load than another, movement can become uneven. If wiring resistance differs between branches, performance can drift.
A 24V architecture can reduce current for a similar electrical power level, which may simplify some power-distribution decisions. It does not improve synchronization accuracy by itself. Synchronization depends on the matched actuators, feedback method, controller, wiring, calibration, load balance and mechanical guidance.
This is one reason 24V may be considered in lifting systems, positioning modules, adjustable workstations, care-related equipment and industrial fixtures when it matches the surrounding electrical architecture.
Design Tip: Multi-actuator synchronization needs more than a 24V supply. For dual-column lifts, paired actuators or position-sensitive mechanisms, confirm the selected feedback method, controller compatibility, permitted synchronization error, load balance, stroke matching, calibration and mechanical guidance before sample approval. Actuator projects that need closed-loop positioning should also review actuators with feedback/controller before choosing the sample set.

For OEM buyers, the commercial value of 24V is strongest when it leads to a cleaner system package. The actuator, controller, harness, feedback method, and test plan should be matched before tooling or batch production.
Use the current controller pages as a starting point, then confirm the ordered configuration rather than carrying old brief-level features into a new project:
| Controller | Current evidence boundary | What to confirm for the project |
|---|---|---|
| IPC1 | OEM controller platform; communication, feedback and wiring interfaces are configuration dependent | Power input, channel arrangement, rated/peak current, control logic, interfaces, enclosure and wiring |
| IPC2 | Dual-actuator controller architecture; synchronization depends on matched actuators, feedback and commissioning | Actuator pair, feedback method, current capacity, wiring, permitted position error and fault behavior |
| IPC3 | DC controller platform; current product evidence references 12V/24V project context but enclosure/environmental requirements remain configuration dependent | Supply, actuator current, feedback, wiring/interface, enclosure protection and documentation |
| IPC4 | Multi-channel controller platform; channel count, control method, synchronization and enclosure protection must be confirmed by configuration | Required channels, current, feedback, wiring, synchronization behavior, enclosure and environmental evidence |
This matrix is a configuration-screening aid, not a product specification. Procurement and R&D teams should still ask:
“Which actuator and controller package should we test together for this machine?”
That question is much more useful than asking for a loose 24V actuator quotation with no controller, cable, feedback, or environment details.
Heat is one of the hidden enemies in actuator systems.
Heat can come from the motor, controller, wiring, connectors, power supply, and the mechanical load. If the actuator is undersized, overloaded, cycled too often, or paired with the wrong controller, the system may pass a short test but fail during repeated operation.
Because 24V can reduce current for similar power, it can help lower electrical stress in wiring and control components. That is useful when the actuator is installed inside an enclosure or equipment frame where airflow is limited.
This does not replace duty cycle planning. Many compact linear actuators are designed for intermittent operation. Duty cycle remains a key selection factor. Some actuator configurations may use low intermittent-duty ratings, but the exact percentage, time basis, load and ambient conditions must be confirmed for the selected model. If the application needs frequent movement, the buyer should confirm run time, rest time, load, ambient temperature, and controller margin before sample approval.
Voltage helps, but duty cycle still rules the thermal conversation.
OEM equipment is not only designed once. It has to be built, tested, shipped, serviced, and repeated.
Voltage choice affects:
If a product line uses a consistent 24V motion architecture, it can be easier to standardize controllers, harnesses, labels, testing fixtures, and replacement parts. That matters when the same actuator system will be produced in batches instead of installed once.
For procurement teams, this is also where 24V can simplify supplier communication. Instead of asking only for “a strong actuator,” the buyer can specify a complete motion package:
That turns a vague inquiry into a buildable specification.
Engineer’s Takeaway: In OEM purchasing, a 24V actuator is not the final answer. The final answer is a verified motion set: actuator, controller, cable harness, mounting hardware, feedback, duty cycle, and test condition.

24V may be worth evaluating when the project includes one or more of these conditions:
| Project condition | Possible 24V benefit — verify in the actual design |
|---|---|
| Longer cable runs | Lower current at similar power can reduce voltage-drop and conductor-heating pressure; size the real harness from peak/rated current and allowable drop |
| Existing 24V DC architecture | May reduce the need for conversion or a separate actuator supply when voltage/current/controller requirements are compatible |
| Multiple actuators | Lower current per similar-power branch may simplify distribution, but channel count, peak current and synchronization still require controller/system validation |
| Higher electrical power or constrained wiring | May help current and thermal planning; it does not increase actuator force or duty-cycle capability by itself |
| Feedback or synchronized motion | Voltage choice affects the power architecture only; synchronization depends on feedback, controller, calibration and mechanics |
| Documented production platform | A consistent approved voltage architecture may simplify harness, controller and service documentation across a product family |
| Batch production | Standardization can help test fixtures and service parts when the same validated architecture is intentionally reused |
There is no universal crossover point where 24V becomes “better.” Its value depends on the complete electrical and mechanical architecture, including power source, current, cable length, controller, actuator configuration, environment and service requirements.
This article is not an argument against 12V linear actuators.
12V can be the better choice when:
For these projects, moving to 24V may add a converter, new battery architecture, new controller, or unnecessary redesign. The best voltage is the one that fits the whole equipment platform.
A common mistake is assuming that 24V automatically means more force.
It does not.
A 24V actuator can be compact and light duty. A 12V actuator can be built for higher load if its motor, gearbox, screw, and structure are designed for that job. The actuator’s force rating depends on mechanical design, not voltage alone.
For example, ActuLift’s product family includes compact actuators, heavy duty linear actuators, 12V/24V selectable models, 24V-focused models, controllers, lifting columns, and accessories. Some 24V actuators are built for compact movement, while others support higher force or longer stroke. The model selection still has to begin with real mechanical requirements:
Voltage is important, but it is not the whole specification.
Before choosing a 24V linear actuator, answer these questions.
Do not estimate only the object weight. Consider pivot geometry, friction, angle, guide rails, acceleration, safety margin, and whether the load changes during movement.
If cable length is long, voltage drop becomes more important. 24V may make the wiring plan easier, but the harness still needs proper sizing.
For multi-actuator systems, confirm whether you need feedback, synchronized control, Hall sensors, or a special control box.
A fast actuator that overheats in real use is not a good actuator. Confirm run time, rest time, cycle frequency, load, and ambient temperature.
Match voltage and current. Also confirm output channels, feedback support, control mode, enclosure protection, and wiring connection.
Indoor office equipment, medical devices, outdoor machinery, agricultural systems, and washdown-adjacent equipment have different sealing and protection needs. Do not treat voltage as a substitute for IP rating, cable sealing, connector choice, or final-device validation.
Ask for datasheets, drawings, wiring diagrams, test conditions, compliance documents, sample approval records, and batch inspection criteria before scaling the order.
Imagine an industrial equipment manufacturer designing a motorized access panel. The actuator is mounted inside the machine frame, several meters from the control cabinet. The panel must open reliably during service, the machine already uses 24V DC controls, and the buyer wants consistent production wiring across multiple models.
In this example, 24V would be a reasonable candidate because it already matches the machine control architecture, but the final choice still depends on the selected actuator current, controller, harness and validation.
The reasons are not abstract:
Now imagine a small mobile product powered by a 12V battery, with one actuator mounted close to the battery and controller. In that case, 12V may be more practical.
The better voltage depends on the equipment, not the label.
ActuLift’s current catalog includes electric linear actuators, lifting columns, control boxes/controllers, brackets and related linear-motion components for B2B equipment integration. The local product catalog includes multiple actuator families with 12V and/or 24V configurations, along with recurring selection factors such as load, stroke, speed, duty cycle, noise, IP rating, feedback, controller compatibility, mounting, and cable planning.

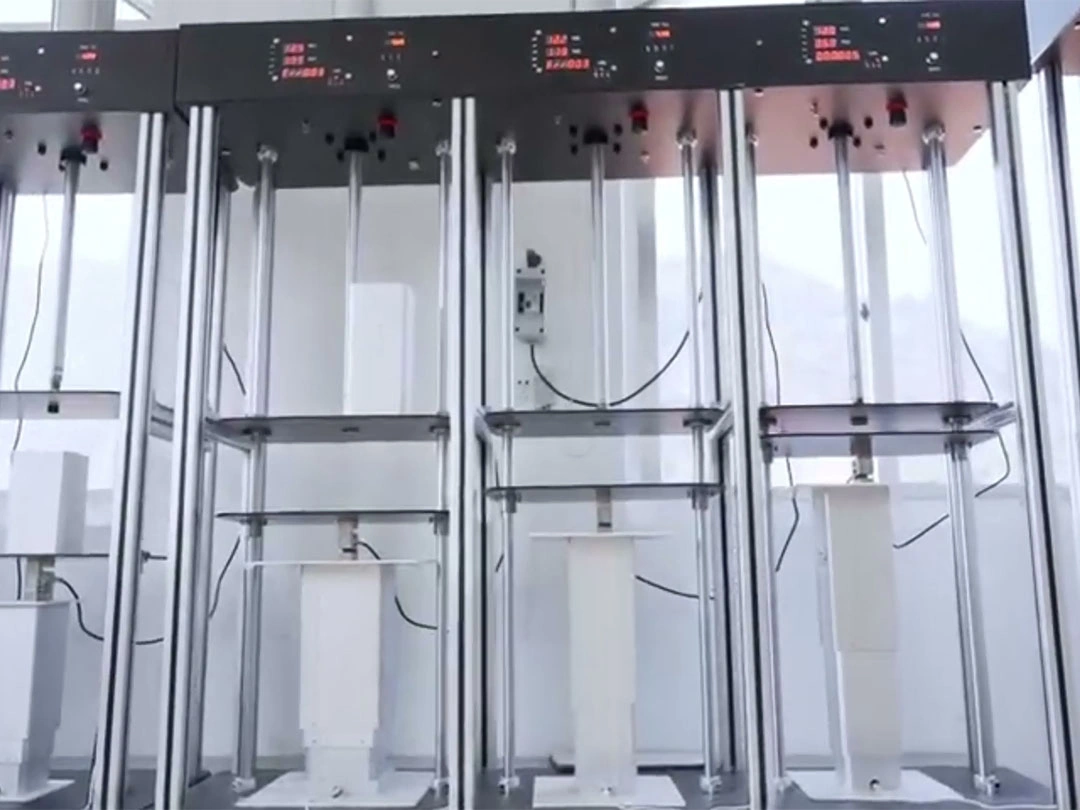

For industrial OEM buyers, a conservative approach is to select and test the actuator and control system together. A candidate 24V actuator should be checked with:
This is where voltage becomes a system-design decision rather than a standalone actuator attribute.
A 24V actuator architecture can be advantageous in some industrial OEM equipment because, for similar electrical power, it can reduce current and may ease harness, voltage-drop and controller-current planning. Those benefits depend on the actual actuator, controller, cable and operating point.
But 24V is not magic. It does not automatically increase force, replace duty cycle planning, or solve poor mechanical design.
For OEM projects, evaluate 24V when it matches the available power architecture and helps meet current, harness, controller, multi-actuator or production-standardization requirements.
Evaluate 12V when the equipment is already built around 12V DC, especially for battery-based or short-harness systems where the current and controller requirements remain acceptable.
The best actuator voltage is the one that fits the whole machine.
For a new industrial equipment project, prepare the load, stroke, speed, duty cycle, controller, cable length, feedback, and environment requirements before requesting a quote. Then ask for a system-level matching review, not only a unit price.
For OEM development, ActuLift can help buyers evaluate the actuator, matching controller, cable harness, feedback method, and mounting plan as one sample package. Testing the actuator with the intended IPC-series controller and wiring layout helps the R&D team check electrical compatibility, mechanical fit, overload behavior, noise, sealing, and control response before moving into batch production.
Not automatically. Strength depends on the actuator’s motor, gearbox, screw design, load rating, and mechanical structure. A 24V system may reduce current demand for similar power, but voltage alone does not define force.
24V actuators are common in industrial equipment because 24V DC fits many professional control architectures and can make wiring, controller matching, voltage-drop management, and multi-actuator power distribution easier.
No. 12V is often better for compact, battery-powered, vehicle-based, or short-wire systems that already use 12V DC. 24V may be useful for larger OEM equipment with longer cables, centralized controllers or multiple actuators when the lower-current architecture fits the selected components.
Only if the power supply, controller, wiring, connectors, and mechanical requirements are changed or confirmed for 24V operation. Do not connect a 24V actuator to a 12V-only control system without engineering review.
No, unless the actuator is specifically rated for 24V operation. Applying 24V to a 12V actuator can damage the motor, controller, limit components, or wiring.
Confirm load, stroke, speed, duty cycle, controller rating, cable length, current draw, feedback needs, IP rating, mounting geometry, side-load control, and sample test conditions.
No. 24V can help reduce current stress in some parts of the electrical system, but actuator heat still depends on load, run time, duty cycle, ambient temperature, speed, and mechanical resistance.
Not by itself. A 24V architecture may simplify current distribution in some multi-actuator systems, but synchronization accuracy depends on matched actuators, feedback, controller logic, wiring, calibration, load and mechanical guidance.
For similar power demand, a 24V system can operate at lower current than a 12V system. Since conductor heat loss follows P_loss = I^2 x R, cutting current can sharply reduce copper loss in the cable and control path.
Yes. For production equipment, the actuator, controller, cable harness, connector, feedback method, mounting geometry, duty cycle, and final load should be tested as one motion system before batch approval.
Selecting the right electric linear actuator or lifting column is critical for your project's performance. As a professional Motion Control & Automation Manufacturer, our engineers help you customize load capacity, stroke length, and IP ratings based on your specific application. Share your technical requirements for a tailored solution.
